| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

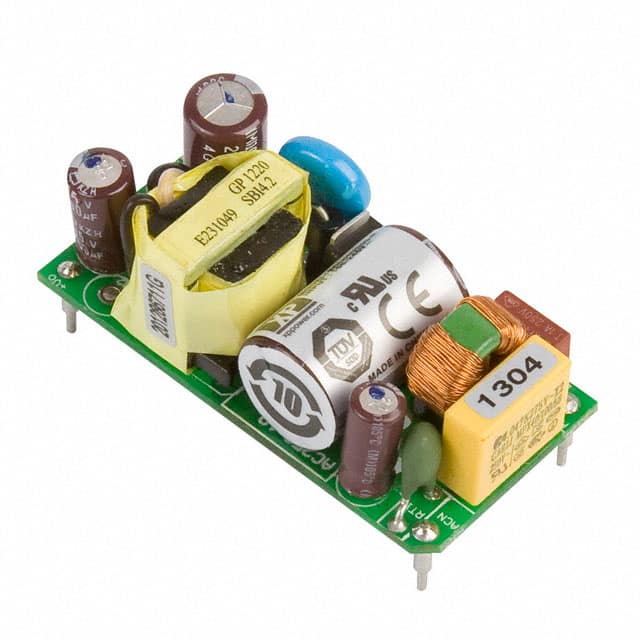

This AC/DC converter from XP Power, part number ECL05US12-P, delivers 5 watts of power with a single 12V output. It operates with a wide input voltage range of 85-264 VAC, making it suitable for global applications. The converter boasts an efficiency of 78% and features universal input capabilities.
Designed with an open frame construction, this unit is intended for through-hole mounting, offering a compact solution for power supply needs. Key electrical specifications include a maximum input current of 0.1 A, a start-up delay of 3 seconds, and a hold-up time of 16 ms. It also includes overvoltage and overload protection for enhanced reliability.
The operating temperature range is -20°C to 70°C with derating, and it is convection-cooled. The dimensions are 50.8mm in length, 25.4mm in width, and 22.9mm in height. This converter is certified by CSA, cUL, EN, IEC, and UL, and complies with standard 62368-1, making it suitable for ITE (Commercial) applications.
The output voltage is 12V.
The input voltage range is 85-264 VAC.
The power rating is 5 Watts.
It supports through-hole mounting.
The operating temperature range is -20°C to 70°C, with derating.
Yes, it is RoHS3 Compliant.
