| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Diameter | |
| Features | |
| Height | |
| Height - Seated (Max) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Voltage - Rated |

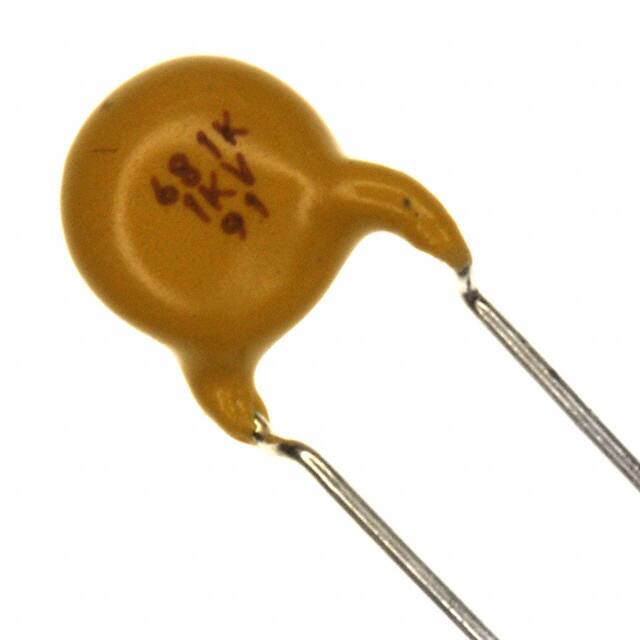

The Panasonic ECK-A3A681KBP is a ceramic disc capacitor with a capacitance of 680 pF and a rated voltage of 1000V (1kV). It features a Y5P (B) temperature coefficient and an operating temperature range of -25°C to 125°C, making it suitable for general purpose high voltage applications.
This capacitor is designed for through-hole mounting with a radial disc package. It has formed leads with a lead spacing of 5.00mm (0.197 inches). The component diameter is 7.00mm and the maximum seated height is 11.00mm.
The Y5P dielectric offers stable capacitance over a wide temperature range, and the high voltage rating allows use in power supply circuits, snubber networks, and other high voltage filtering applications. The part is RoHS3 compliant and has an MSL of 1 (unlimited).
680 pF.
1000V (1kV).
±10%.
Y5P (B).
-25°C to 125°C.
Radial, Disc.
5.00mm (0.197 inches).
