| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Diameter | |
| Features | |
| Height | |
| Height - Seated (Max) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Temperature Coefficient | |
| Tolerance | |
| Voltage | |
| Voltage - Rated |

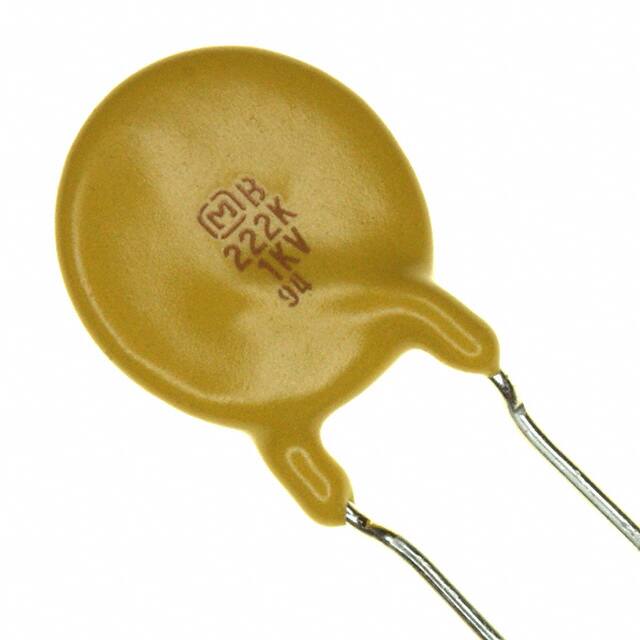

The Panasonic ECK-A3A222KBP is a high-voltage ceramic disc capacitor offering 2200pF capacitance with a 1000V (1kV) DC rating. It features a Y5P (B) temperature coefficient and ±10% tolerance, making it suitable for general-purpose applications requiring stable performance over a wide temperature range.
Electrically, the capacitor operates from -25°C to 125°C and is designed for high-voltage decoupling, snubber circuits, and filtering in power supplies and industrial electronics. The Y5P dielectric provides moderate temperature stability.
Mechanically, the part is housed in a radial disc package with a 12.00mm diameter and a seated height of 16.00mm. It has formed leads with 5.00mm lead spacing for through-hole mounting on PCBs.
2200 pF.
1000V (1kV).
Y5P (B).
±10%.
Radial, Disc.
-25°C to 125°C.
5.00mm.
