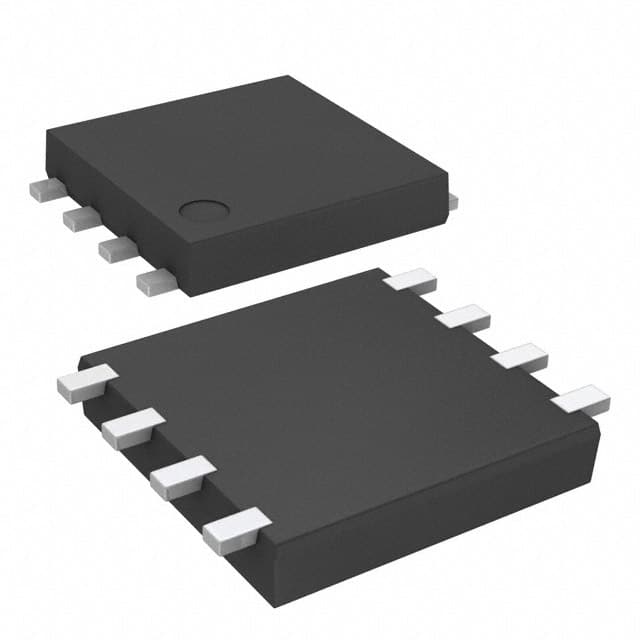

The ECH8651R-TL-H is a dual N-Channel MOSFET from On Semiconductor, featuring two independent MOSFETs in a compact 8-SMD flat lead package. It is rated for a drain-source voltage of 24V and continuous drain current of 10A, with a maximum on-resistance of 14mOhm at 5A gate drive of 4.5V. The device includes a logic level gate feature, allowing direct drive from low voltage logic circuits. Total gate charge is 24nC at 10V, enabling efficient switching in high-frequency applications. Maximum power dissipation is 1.5W.
Designed for surface mount assembly, the 8-ECH package provides a low profile suitable for space-constrained designs. Typical applications include DC-DC converters, load switching, and power management circuits where small footprint and dual-channel integration are beneficial. The operating junction temperature range extends to 150°C.
This part is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is a logic level gate MOSFET, compatible with 3.3V and 5V logic systems. The dual configuration allows both channels to be used independently or in parallel for higher current handling.
Designers should consider the 14mOhm on-resistance for minimizing conduction losses in low voltage applications. Gate charge characteristics support moderate switching speeds; for higher frequency designs, additional capacitance values should be obtained from the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
| 10+ | $0.84 | $0.84 |
| 50+ | $0.62 | $0.62 |
| 100+ | $0.55 | $0.55 |
| 500+ | $0.43 | $0.43 |
| 3,000+ | $0.34 | $0.34 |
| 6,000+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 24V.
The continuous drain current is 10A.
The maximum on-resistance is 14mOhm at a drain current of 5A and gate-source voltage of 4.5V.
The device is marked as RoHS3 Compliant, but this information is unverified.
It comes in an 8-SMD flat lead package, supplier package 8-ECH.
The maximum junction operating temperature is 150°C.
