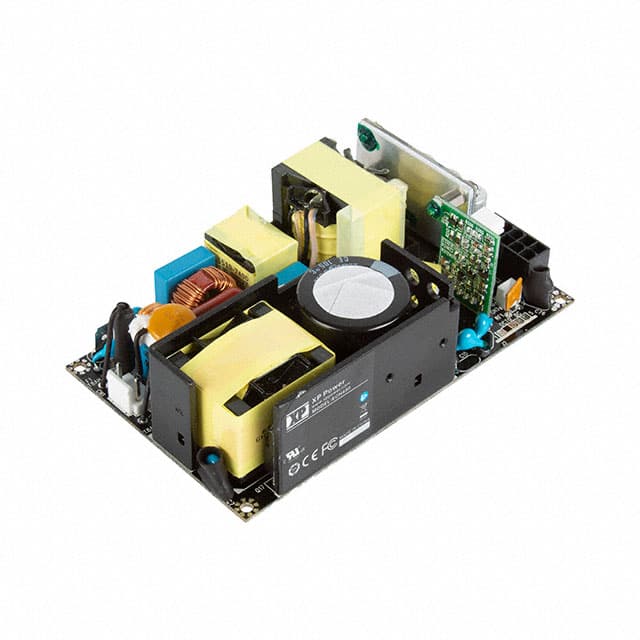

The XP Power ECH450PS15 is a chassis mount AC-DC converter designed for integration into compact equipment. It delivers a regulated 15V output with a convection cooled power rating of 249W, expandable to 450W with forced air cooling.
This converter features a wide input voltage range of 90 to 264VAC, making it suitable for global applications. It includes essential features like remote On/Off control and a standby output. The ECH450PS15 holds medical approvals for 2 x MOPP (BF) and meets IEC/UL/EN62368-1 safety standards for ITE equipment.
With dimensions of 127.0 x 76.2 x 32.0mm, it is designed for efficient integration. The operating temperature range is -20°C to 70°C with derating. Applications include ITE (Commercial), Medical, IoT, Instrumentation, Robotics, and Process control.
The ECH450PS15 provides a nominal output voltage of 15V.
The ECH450PS15 has a maximum output current of 16.6A.
The ECH450PS15 is rated for 249W under convection cooled conditions and 450W when fan cooled.
The ECH450PS15 accepts a universal input voltage range of 90 to 264VAC.
The ECH450PS15 operates within a temperature range of -20°C to 70°C, with derating applied.
Yes, the ECH450PS15 has medical approvals including 2 x MOPP (BF).
The standard open frame dimensions for the ECH450PS15 are 127.0 x 76.2 x 36.1mm.
