| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,773 pcs
|
2773 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

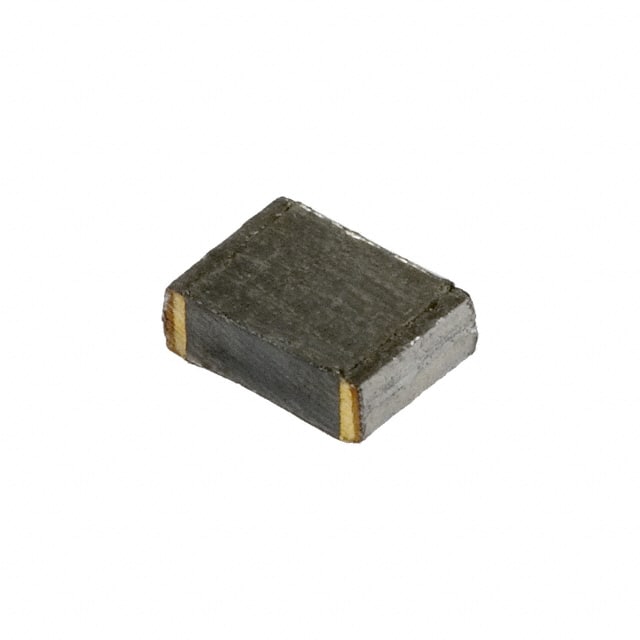

The ECH-U1H223JX5 is a surface mount film capacitor from Panasonic Electronic Components. It offers a capacitance of 0.022 µF with a tolerance of ±5% and a voltage rating of 50V DC. The dielectric material is metallized polyphenylene sulfide (PPS) in a stacked construction, providing stable electrical performance over a wide temperature range of -55°C to 125°C.
This capacitor is housed in a 1210 (3225 Metric) package with solder pad terminations, making it suitable for automated surface mount assembly. The compact dimensions of 3.20mm length, 2.50mm width, and 1.70mm height allow for high-density PCB designs.
Designed for general purpose applications, the ECH-U1H223JX5 delivers reliable performance in filtering, coupling, decoupling, and timing circuits where stable capacitance and low losses are required. The PPS dielectric offers excellent temperature stability and low dissipation factor.
0.022 µF
50V DC
±5%
Polyphenylene Sulfide (PPS), metallized and stacked
1210 (3225 Metric)
-55°C to 125°C
RoHS3 Compliant (unverified)
