| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,115 pcs
|
1115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

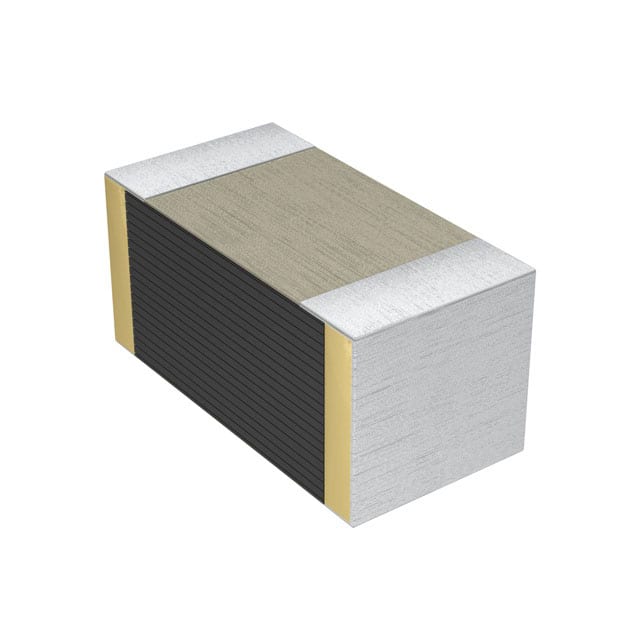

The Panasonic ECH-U1C473JX5 is a general-purpose film capacitor with a capacitance of 0.047 µF and a voltage rating of 16 V DC. It uses a metallized stacked Polyphenylene Sulfide (PPS) dielectric, providing stable performance over a wide temperature range of -55°C to 125°C.
The capacitor is housed in a 1206 (3216 metric) surface-mount package with solder pad terminations. The dimensions are 3.20mm length by 1.60mm width with a height of 1.70mm. It has a tight capacitance tolerance of ±5%.
This component is suitable for general purpose DC filtering, coupling, and decoupling applications where a stable, low-loss film dielectric is required. The PPS dielectric offers low dissipation factor and excellent long-term capacitance stability.
0.047 µF
16 V DC
Polyphenylene Sulfide (PPS), metallized and stacked.
±5%
1206 (3216 metric) surface mount.
-55°C to 125°C
RoHS3 compliant per existing data, but this claim is unverified. It carries an UNVERIFIED_COMPLIANCE flag.
