| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

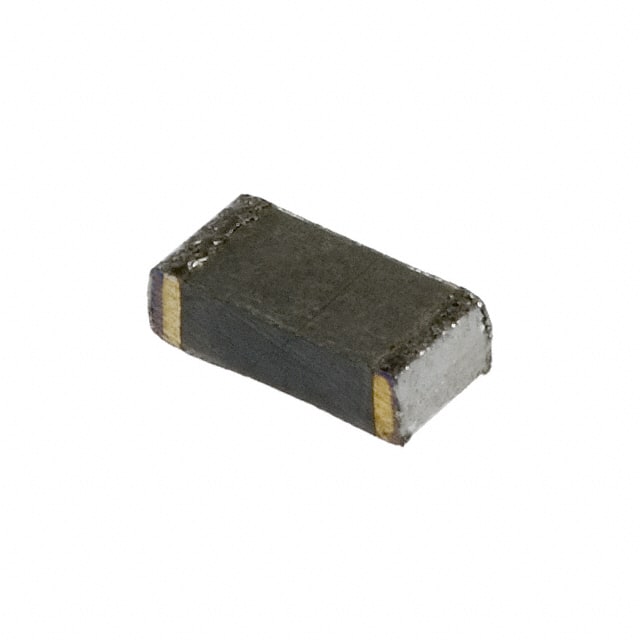

The ECH-U1C153JX5 is a surface mount film capacitor from Panasonic Electronic Components, featuring a nominal capacitance of 0.015 µF with a ±5% tolerance. It is rated for 16V DC operation and utilizes a metallized stacked polyphenylene sulfide (PPS) dielectric, known for stable electrical performance over a wide temperature range.
This capacitor is designed for general purpose applications and is housed in a standard 1206 (3216 Metric) package with solder pad terminations. Its operating temperature range spans from -55°C to 125°C, making it suitable for environments with extreme temperature variations.
The compact 1206 footprint (3.20mm x 1.60mm) with a height of 1.10mm allows for efficient use of PCB space in surface mount assemblies. The PPS dielectric offers low dissipation factor and good capacitance stability, which is beneficial for timing, filtering, and coupling circuits.
The capacitance is 0.015 µF.
The voltage rating is 16V DC.
The tolerance is ±5%.
The dielectric material is metallized stacked polyphenylene sulfide (PPS).
It is available in a 1206 (3216 Metric) surface mount package.
