| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Tolerance | |
| Voltage Rating | |
| Width |

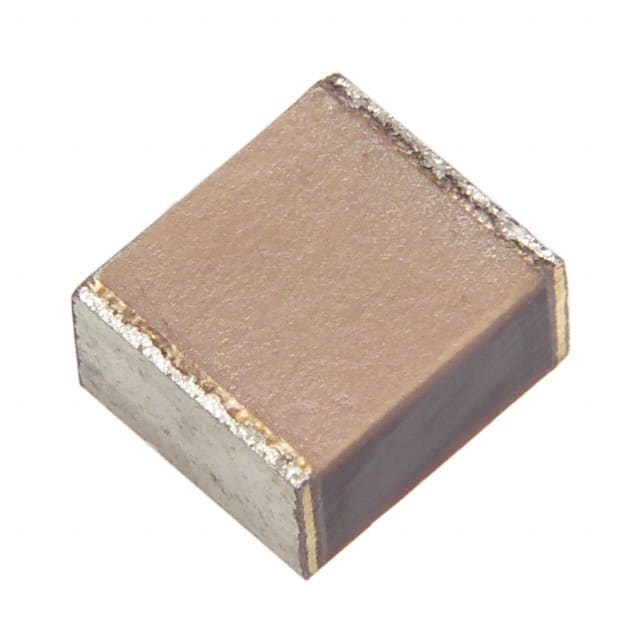

The ECH-U1224JCV is a surface mount film capacitor from Panasonic, utilizing a metallized polyphenylene sulfide (PPS) dielectric in a stacked construction. It offers a capacitance of 0.22 µF with a tolerance of ±5% and a DC voltage rating of 100V.
Operating temperature range is -55°C to 105°C, suitable for general purpose applications. The capacitor is housed in a 2825 (7163 Metric) package with dimensions 7.10mm length x 6.30mm width x 5.10mm height and solder pad terminations.
PPS film capacitors are known for stable capacitance over temperature and frequency, low dissipation factor, and high insulation resistance. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is a direct replacement for DigiKey part numbers PCF1493TR-ND, PCF1493CT-ND, and PCF1493DKR-ND.
0.22 µF.
100V DC.
Polyphenylene Sulfide (PPS), metallized and stacked.
±5%.
2825 (7163 Metric) surface mount package with dimensions 7.10mm x 6.30mm x 5.10mm.
-55°C to 105°C.
Surface mount with solder pads.
