| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Climatic Category | |
| Color | |
| Connector Type | |
| Contact Diameter | |
| Contact Finish | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage (@ Contact-Contact) | |
| Dielectric Withstanding Voltage (@ Contact-Shell) | |
| Failure Rate | |
| Fastening Type | |
| Flammability Rating | |
| Humidity Rating | |
| Ingress Protection | |
| Insulation Material | |
| Keying | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Orientation | |
| Primary Material | |
| Salt Spray Corrosion Resistance | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shell Style | |
| Shielding | |
| Shielding Effectiveness (Minimum @ 1 GHz) | |
| Shielding Effectiveness (Minimum @ 10 MHz) | |
| Shock Resistance | |
| Termination | |
| Termination Style | |
| Vibration Resistance | |
| Weight | |
| Wire Gauge |

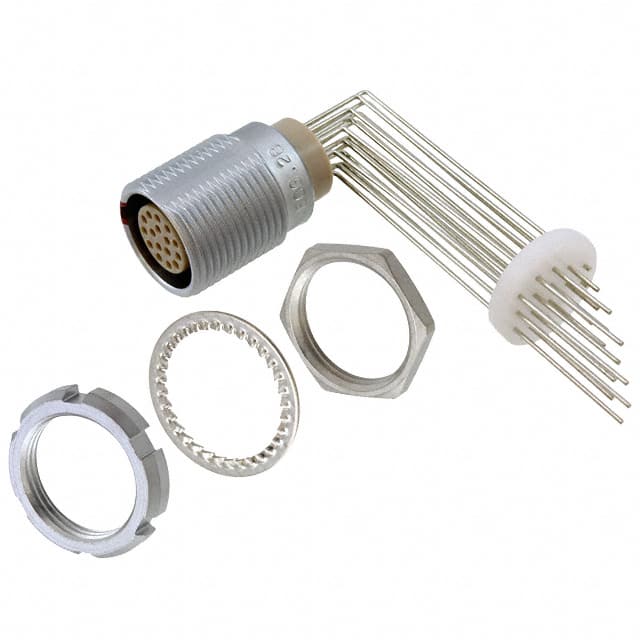

The LEMO ECG.2B.316.CLV is a fixed receptacle from LEMO's Series B indoor keyed connectors. It features 16 female socket contacts with gold finish, accepting 30-22 AWG wire. The connector offers a push-pull locking mechanism and is designed for panel mounting with a right-angle PCB solder termination. The shell is brass with chrome plating, providing durability and shielding effectiveness of at least 75 dB at 10 MHz and 40 dB at 1 GHz. Electrical ratings include 6A current per contact, contact resistance of 6.1 mOhm max, and dielectric withstand of 950 V AC / 1340 V DC between contacts and 1250 V AC / 1770 V DC to shell. The operating temperature range is -55°C to 250°C. The insulator is made of PEEK with UL94 V-0 flammability rating. The connector is IP50 dust-protected and rated for 5000 mating cycles. With a weight of 20.1 g, it is suitable for applications requiring reliable shielded connections in demanding environments.
16 positions.
6A per contact.
Panel Mount, Through Hole, Right Angle.
-55°C to 250°C.
Yes, shielded with minimum 75 dB attenuation at 10 MHz and 40 dB at 1 GHz.
5000 cycles.
Push-pull.
