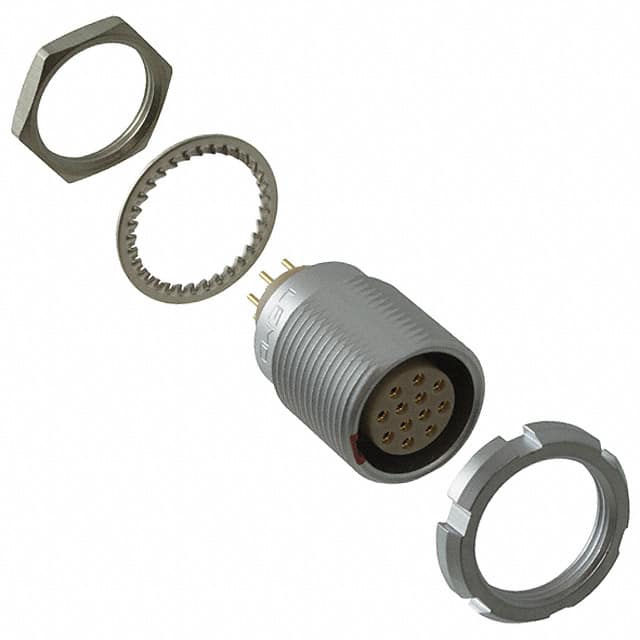

ECG.2B.312.CLN A 12-position circular receptacle connector from Lemo with push-pull locking, rated 7A, shielded, suitable for panel mounting with solder termination.
Mfr Part #:

ECG.2B.312.CLN

Available from 1 distributors
Mfr Name: Lemo
Lemo
A 12-position circular receptacle connector from Lemo with push-pull locking, rated 7A, shielded, suitable for panel mounting with solder termination.
✓ Total Stock: 3 pcs
$ Price Range: $46.47 - $64.30

ECG.2B.312.CLN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECG.2B.312.CLN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Finish
Contact Resistance
Current Rating (Amps)
Fastening Type
Ingress Protection
Insulator Material
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature
Orientation
Primary Material
Shell Finish
Shell Material
Shell Size
Shielding
Termination
Termination Style
Weight
View Similar Products (0)

ECG.2B.312.CLN Description

Short technical summary and product information.

Lemo ECG.2B.312.CLN is a fixed rear panel mounted circular receptacle connector from the B indoor-keyed series. It features 12 female socket contacts rated at 7 A, with gold contact finish and a contact resistance of 6.1 mΩ. The insulator is made of PEEK material with UL94 V-0 flammability rating.



The connector employs a push-pull fastening system and has a chrome-plated brass shell. It offers shielding with effectiveness up to 75 dB at 10 MHz and 40 dB at 1 GHz. The operating temperature range is -55°C to +250°C, and it withstands over 5000 mating cycles.



Designed for panel mounting with a M15 drill hole, the termination style is solder through hole. The connector is IP50 dust protected and meets environmental standards including salt spray corrosion resistance over 1000 hours. Weight is 17.08 g.

ECG.2B.312.CLN Quick Information

Product Type: Circular Connector Receptacle
Series: B
Canonical Name: Lemo ECG.2B.312.CLN Circular Receptacle Connector, Female Sockets, 12 Positions, Solder, Panel Mount
Subcategory: Push-Pull Connector

ECG.2B.312.CLN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ECG.2B.312.CLN Estimated Pricing

Qty Low High
1+ $64.30 $64.30
10+ $54.66 $54.66
30+ $50.58 $50.58
50+ $48.79 $48.79
100+ $46.47 $46.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

ECG.2B.312.CLN Features

  • 12 gold-plated socket contacts.
  • Push-pull locking mechanism.
  • Shielded design with high EMI performance.
  • 5000 mating cycles durability.
  • Withstands -55°C to 250°C.

ECG.2B.312.CLN Applications

  • Suitable for harsh environment connections.
  • Ideal for high-temperature applications.
  • Used in shielded signal transmission.

ECG.2B.312.CLN FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the ECG.2B.312.CLN connector have?

12 positions.

What is the current rating of the ECG.2B.312.CLN?

7 A.

What is the mounting type of this connector?

Panel mount with through hole solder termination, using front and rear side nuts.

What is the contact resistance of the ECG.2B.312.CLN?

6.1 mOhm.

What is the operating temperature range?

-55°C to 250°C.

Is the connector shielded?

Yes, it is shielded with effectiveness 75 dB at 10 MHz and 40 dB at 1 GHz.

What is the ingress protection rating?

IP50 (dust protected).
