| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

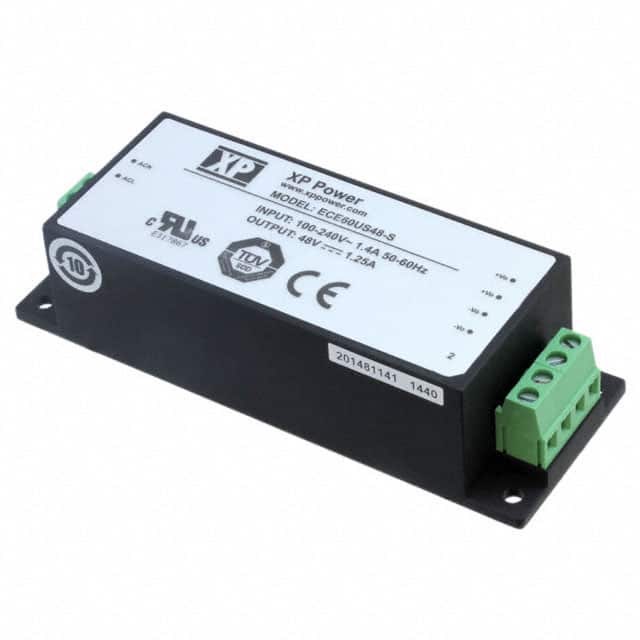

The XP Power ECE60US48-S is part of the ECE60 series of compact, encapsulated AC-DC power modules. This model provides a 48V DC output at 1.25A, delivering a nominal power of 60W. It accepts a wide input voltage range of 85-264 VAC, making it suitable for global applications.
Designed for efficiency, the ECE60US48-S offers up to 89% efficiency and a low no-load input power of less than 0.5W. It operates reliably within a temperature range of -40°C to +70°C, with derating applied at higher temperatures. The unit is built to meet EMC standards EN55032 Level B and safety approvals including IEC/EN/UL 62368-1.
This converter is available in a chassis mount version, offering flexibility in integration. Its compact dimensions and robust construction make it suitable for various industrial and commercial applications requiring a dependable power source.
The output voltage is 48 VDC.
The nominal output current is 1.25 A.
The power rating is 60W.
The operating temperature range is -40°C to +70°C.
It meets EN55032 Level B Conducted & Radiated, EN61000-4, and EN61000-3 standards.
It has IEC / EN / UL 62368-1 and CSA per cUL safety approvals.
