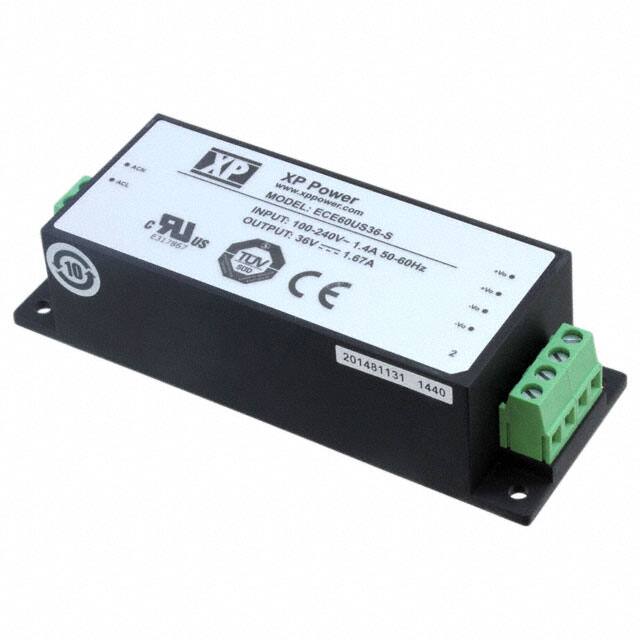

The XP Power ECE60US36-S is an enclosed AC-DC power supply module from the ECE60 series, designed for ITE (Commercial) applications. It provides a nominal output voltage of 36V DC at a current of 1.67A, delivering a total output power of 60W.
This power supply operates with an input voltage range of 85-264 VAC and boasts a high efficiency of up to 89%. It is designed for chassis mounting and features a compact size with dimensions of 104.0mm x 40.0mm x 28.5mm. The operating temperature range is -40°C to 70°C with derating.
Key features include universal input voltage capability, 3kV isolation, and compliance with EMC standards such as EN55032 Level B. Safety approvals include IEC/EN/UL 62368-1 and CSA per cUL. The ECE60US36-S is suitable for various commercial and industrial applications requiring a reliable and efficient power source.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The nominal output voltage is 36 VDC and the nominal output current is 1.67 A.
The operating temperature range is -40 °C to +70 °C.
The typical efficiency is 87%.
The mounting type is chassis mount.
The dimensions are 104.0 mm x 40.0 mm x 28.5 mm.
It holds IEC/EN/UL 62368-1 and CSA per cUL safety approvals.
