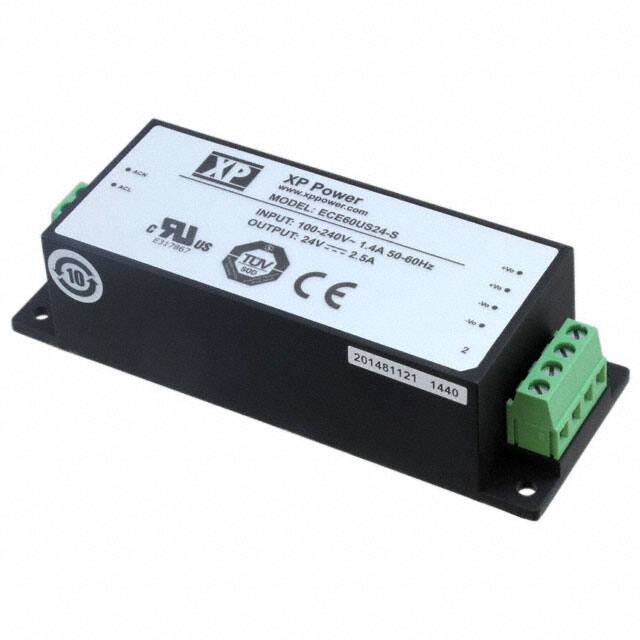

The XP Power ECE60US24-S is a 60W AC-DC power supply module designed for chassis mounting. It provides a single 24V DC output and operates with a wide input voltage range of 85-264 VAC or 120-370 VDC.
This series offers high active mode efficiency, reaching up to 89%, and a low no-load input power of less than 0.5W for 48V versions. The module features a peak load capability of up to 130% of nominal power for short durations. It operates reliably within a wide temperature range of -40°C to +70°C, with derating applied at higher temperatures.
Key features include compact dimensions, encapsulated construction, and compliance with EMC standards like EN55032 Level B. Safety approvals include IEC/EN/UL 62368-1 and CSA per cUL, making it suitable for ITE (Commercial) applications. The unit has a 3kV isolation voltage and includes overvoltage protection.
Dimensions are 104.0mm x 40.0mm x 28.5mm. The ECE60US24-S is designed for robust performance in various industrial and commercial environments.
85-264 VAC or 120-370 VDC.
24V at 2.5A, 60W.
-40 to +70°C with derating above 50°C.
Chassis mount, dimensions 104.0 x 40.0 x 28.5 mm.
IEC/EN/UL 62368-1 and CSA per cUL.
Up to 89% typical 87%.
Yes, 195-216% of nominal output voltage.
