| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

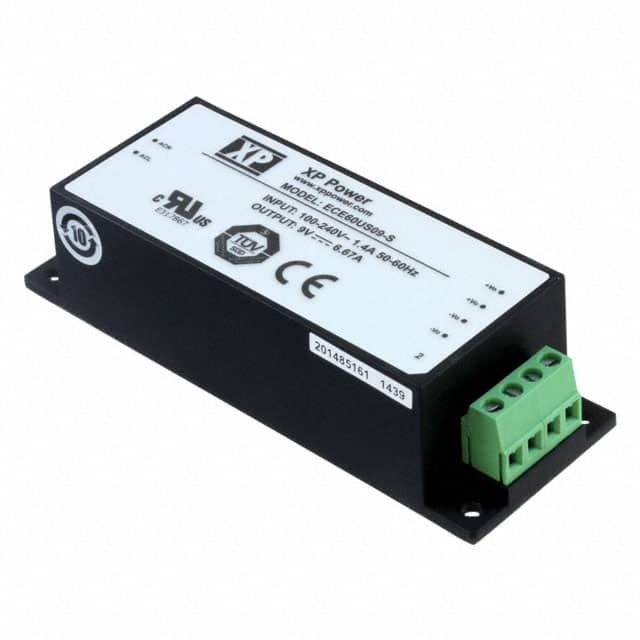

The XP Power ECE60US09-S is a compact, encapsulated AC-DC power module designed for chassis mounting. It delivers a nominal output power of 60W with a 9V output voltage and a nominal current of 6.67A, capable of a peak current of 8.67A for short durations.
This power supply features a wide input voltage range of 85-264 VAC or 120-370 VDC, ensuring versatility in various applications. It boasts high efficiency, typically reaching up to 89%, with a low no-load input power consumption of less than 0.5W for this voltage version. The operating temperature range is -40°C to +70°C, with derating applied at higher temperatures.
Designed for industrial and commercial applications, the ECE60US09-S meets EMC standards EN55032 Level B and safety approvals including IEC/EN/UL 62368-1 and CSA per cUL. Its dimensions are 104.0mm x 40.0mm x 28.5mm, providing a high power density.
Key electrical specifications include ±1% initial set accuracy, ±1% load regulation, and a transient response recovery within 1% in less than 500 μs for a 25% load change. Ripple and noise are kept to a maximum of 1% pk-pk.
85-264 VAC or 120-370 VDC.
9 VDC.
-40°C to 70°C with derating above 50°C.
79-89% average measured at 25%, 50%, 75%, and 100% load with 230 VAC input.
IEC/EN/UL 62368-1 and CSA per cUL.
Enclosed chassis mount, dimensions 104.0mm x 40.0mm x 28.5mm.
6.67 A nominal, peak 8.67 A for up to 30 seconds with 10% duty cycle.
