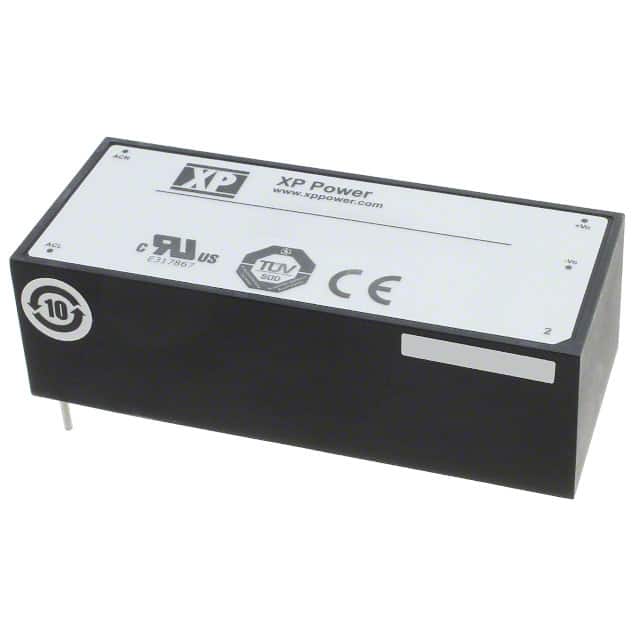

The XP Power ECE60US09 is part of the ECE60 series of compact, encapsulated AC-DC power modules. This specific model provides a 9VDC output at a nominal power of 60W, with a peak load capability up to 130% for short durations.
It features a wide input voltage range of 85-264 VAC and 120-370 VDC, making it suitable for global applications. The module boasts high active mode efficiency, reaching up to 89%, and a low no-load input power consumption. Its operating temperature range is -40°C to +70°C, with derating applied at higher temperatures.
Designed for ITE (Commercial) applications, the ECE60US09 is available in a Through Hole package. It meets EMC standards including EN55032 Level B and safety approvals such as IEC/EN/UL 62368-1 and CSA per cUL.
Key specifications include an initial set accuracy of ±1%, line regulation of ±0.5%, and load regulation of ±1% for most models. Ripple and noise are kept to a minimum, with values like 1% pk-pk for most models.
The input voltage range is 85-264 VAC or 120-370 VDC.
The output voltage is 9 VDC and the output current is 6.67 A.
The operating temperature range is -40°C to +70°C.
The package is a 4-DIP through-hole module.
It has safety approvals to IEC/EN/UL 62368-1 and CSA per cUL.
Efficiency ranges from 79% to 89% at 230 VAC input.
The hold-up time is 16 ms minimum at full load and 115 VAC input.
