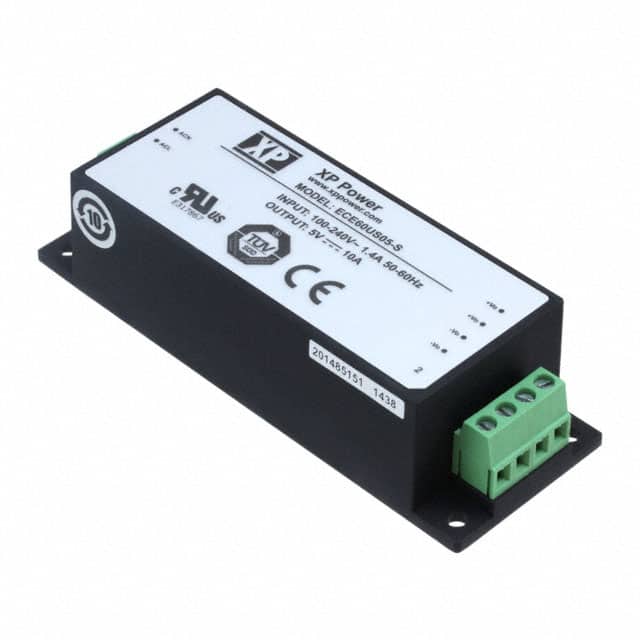

The XP Power ECE60US05-S is a 50W encapsulated AC-DC power module designed for industrial and embedded systems. It provides a single 5V DC output with a maximum current of 10A.
This power supply features a wide input voltage range of 85-264 VAC and achieves up to 83% efficiency. It operates reliably within an extended temperature range of -40°C to +70°C, with derating applied at higher temperatures. The module also offers a peak load capability of up to 130% for short durations.
Available in a chassis mount configuration, the ECE60US05-S has dimensions of 4.45 x 1.57 x 1.12 inches (113.0 x 40.0 x 28.5 mm). It includes essential protections such as overvoltage and overload protection, and meets safety standards including UL 62368-1.
With its compact size, robust design, and high power density, this module is suitable for space-constrained applications requiring reliable power conversion.
85-264 VAC.
5 VDC at 10 A (50W).
-40°C to 70°C with derating above 50°C.
3000 VAC input to output.
Chassis mount, ECE60-S package.
Up to 89%.
IEC/EN/UL 62368-1, CSA per cUL.
