| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

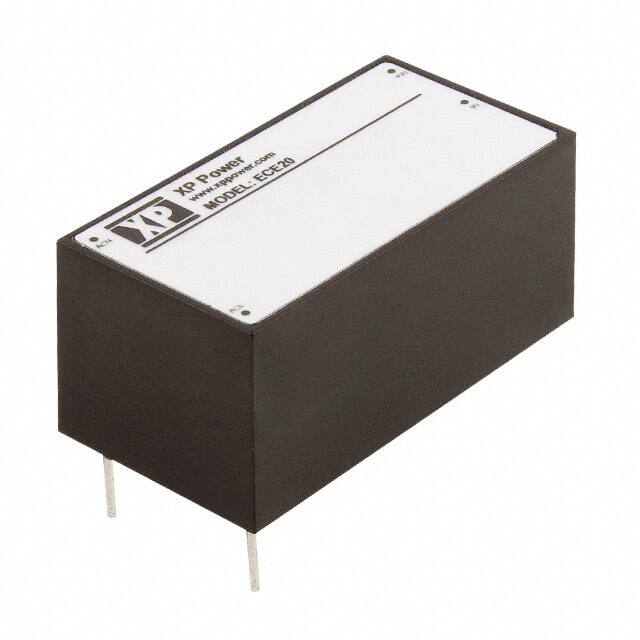

The XP Power ECE20US12 is an enclosed AC-DC converter from the ECE series, delivering 20W of power with a 12V single output. It operates with a wide input voltage range of 85-264 VAC (120-370 VDC) and offers high efficiency up to 82%.
Designed for ITE (Commercial) applications, this converter features through-hole mounting and a 4-DIP Module package. Key electrical specifications include a maximum input current of 0.3A at 230 VAC, a start-up delay of 2s max, and line/load regulation of ±0.5% and ±1% respectively. It also includes overvoltage, overload, and short circuit protection.
The unit operates within a temperature range of -25°C to 70°C with derating and meets various EMC and safety standards, including EN 55032 Level B, EN 61000-4 series, IEC 62368-1, and UL 62368-1.
With its compact size and robust feature set, the ECE20US12 is suitable for various industrial and commercial electronic designs requiring a reliable power conversion solution.
The output voltage is 12V.
The power rating is 20W.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The operating temperature range is -25°C to 70°C, with derating applied above 50°C.
It uses Through Hole mounting.
Yes, it is RoHS3 Compliant.
It complies with IEC 60950-1, IEC 62368-1, UL 62368-1, and CAN/CSA C22.2 No. 62368-1-14.
