| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

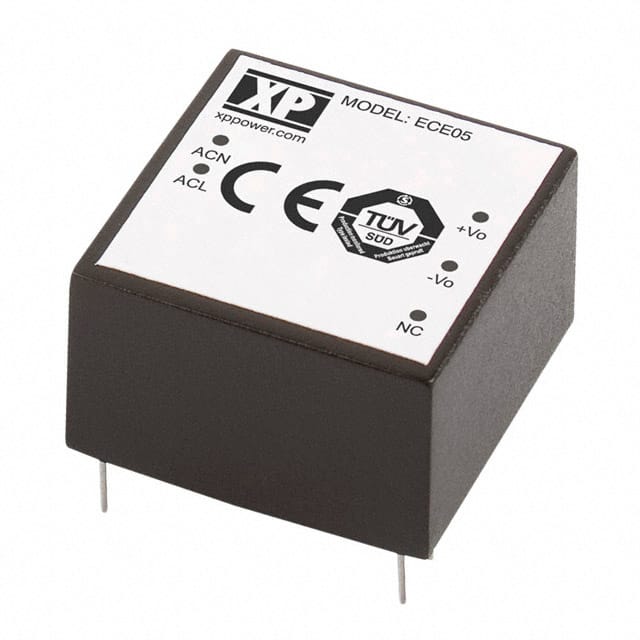

The XP Power ECE05US09 is a 5W AC/DC converter designed for board mount applications. It provides a regulated 9V output. The converter operates from a universal input range of 85 to 264 VAC at 47 to 63 Hz. It draws a typical input current of 0.1 A rms at 230 VAC and has a maximum no load input power of less than 0.3 W. Inrush current is limited to 5 A at 115 VAC and 10 A at 230 VAC. The unit features Class II construction, eliminating the need for an earth connection. Input protection is included, though specific details are not provided in the available data. This compact converter is suitable for a variety of low-power applications requiring isolation and efficiency.
85-264 VAC.
47-63 Hz.
Less than 0.3 W.
5 A at 115 VAC, 10 A at 230 VAC.
No, it has Class II construction.
9 V.
5 W.
