Mfr Part #:

ECC36DJWN

Name: ECC36DJWN
Brand: Sullins Connector Solutions
SKU: ECC36DJWN

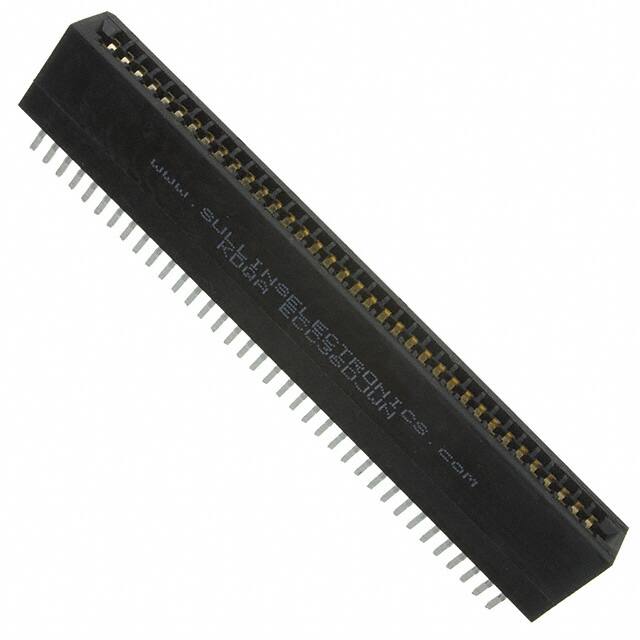

CONN EDGE DUAL FMALE 72POS 0.100

Stock on Request

ECC36DJWN Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 72POS 0.100

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ECC36DJWN-S1136

Sullins Connector Solutions

CONN EDGE DUAL FMALE 72POS 0.100

ECC36DJCN

Sullins Connector Solutions

CONN EDGE DUAL FMALE 72POS 0.100

ECC36DJCN-S1136

Sullins Connector Solutions

CONN EDGE DUAL FMALE 72POS 0.100

ECC36DJXN-S1136

Sullins Connector Solutions

CONN EDGE DUAL FMALE 72POS 0.100

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Phosphor Bronze
Gender	Female
Mounting Type	Through Hole
Number of Positions	36
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Read Out	Dual
Termination	Press-Fit
