Mfr Part #:

ECC22DJWN

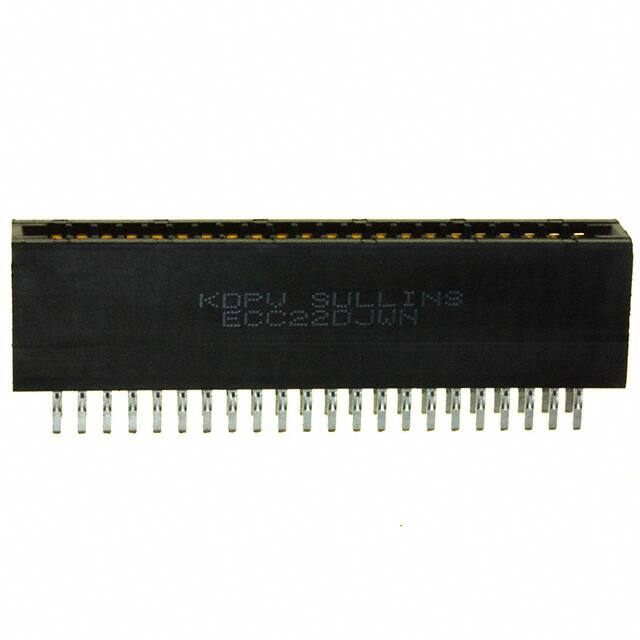

Name: ECC22DJWN
Brand: Sullins Connector Solutions
SKU: ECC22DJWN

CONN EDGE DUAL FMALE 44POS 0.100

Stock on Request

ECC22DJWN Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 44POS 0.100

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ECC22DJWB

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.100

ECC22DJCN

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.100

ECC22DJXN

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.100

ECC22DJCN-S1136

Sullins Connector Solutions

CONN EDGE DUAL FMALE 44POS 0.100

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Phosphor Bronze
Gender	Female
Mounting Type	Through Hole
Number of Positions	22
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Read Out	Dual
Termination	Press-Fit
