Mfr Part #:

ECC05DJBN

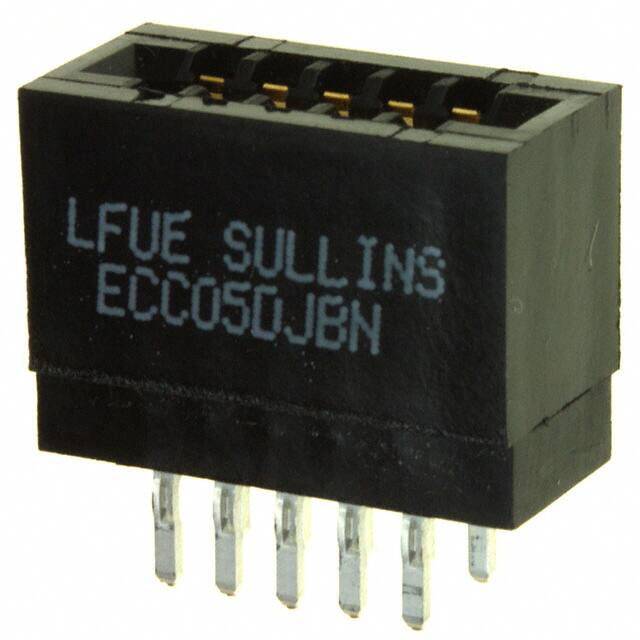

Name: ECC05DJBN
Brand: Sullins Connector Solutions
SKU: ECC05DJBN

CONN EDGE DUAL FMALE 10POS 0.100

Stock on Request

ECC05DJBN Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 10POS 0.100

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ECC05DJXN

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.100

ECC05DJCN-S1136

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.100

ECC05DJXN-S1136

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.100

ECC05DJCN

Sullins Connector Solutions

CONN EDGE DUAL FMALE 10POS 0.100

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Phosphor Bronze
Gender	Female
Mounting Type	Through Hole
Number of Positions	5
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Read Out	Dual
Termination	Press-Fit
