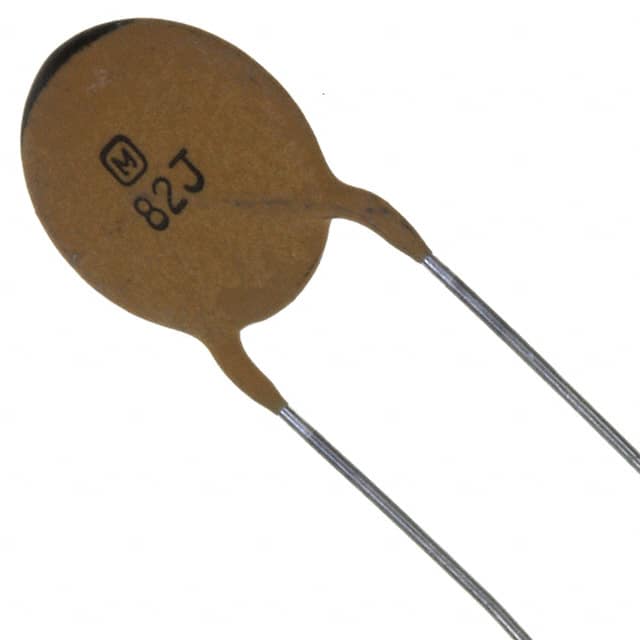

ECC-D2H820JCE 82pF ceramic capacitor rated 500V, C0G/NP0 dielectric, ±5% tolerance, through-hole radial package.
Mfr Part #:

ECC-D2H820JCE

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
82pF ceramic capacitor rated 500V, C0G/NP0 dielectric, ±5% tolerance, through-hole radial package.
✓ Total Stock: 10 pcs

ECC-D2H820JCE Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECC-D2H820JCE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Diameter
Height
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
Package / Case
Temperature Coefficient
Tolerance
Voltage
View Similar Products (0)

ECC-D2H820JCE Description

Short technical summary and product information.

The Panasonic ECC-D2H820JCE is a 82pF ceramic capacitor with a 500V DC rating. It features a C0G/NP0 temperature coefficient, offering stable capacitance over a wide temperature range. The capacitor is housed in a through-hole radial disc package with a diameter of 10.00mm and a lead spacing of 5.00mm. It has straight leads and a seated height of 4.00mm.



This component is suitable for general purpose applications, including filtering, coupling, and decoupling in high-voltage circuits. The operating temperature range is -25°C to 85°C. The capacitor is RoHS compliant (unverified) and has an MSL of 1 (unlimited).

ECC-D2H820JCE Quick Information

Product Type: Ceramic Capacitor
Canonical Name: Capacitor, Ceramic, 82pF, 500V, C0G/NP0, Radial, Through Hole
Subcategory: Radial Leaded Ceramic Capacitor

ECC-D2H820JCE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ECC-D2H820JCE Features

  • 82pF capacitance with ±5% tolerance.
  • Rated for 500V DC operation.
  • C0G/NP0 temperature coefficient for stability.
  • Through-hole radial disc package.
  • Operating temperature -25°C to 85°C.

ECC-D2H820JCE Applications

  • High-voltage filtering in power supplies.
  • Coupling and decoupling circuits.
  • General purpose DC blocking applications.
  • Timing circuits requiring stable capacitance.

ECC-D2H820JCE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the ECC-D2H820JCE?

82 pF.

What is the voltage rating?

500V DC.

What is the temperature coefficient?

C0G, NP0.

What is the tolerance?

±5%.

What is the package or case style?

Radial, Disc.

What is the operating temperature range?

-25°C to 85°C.

What is the lead spacing?

5.00 mm.
