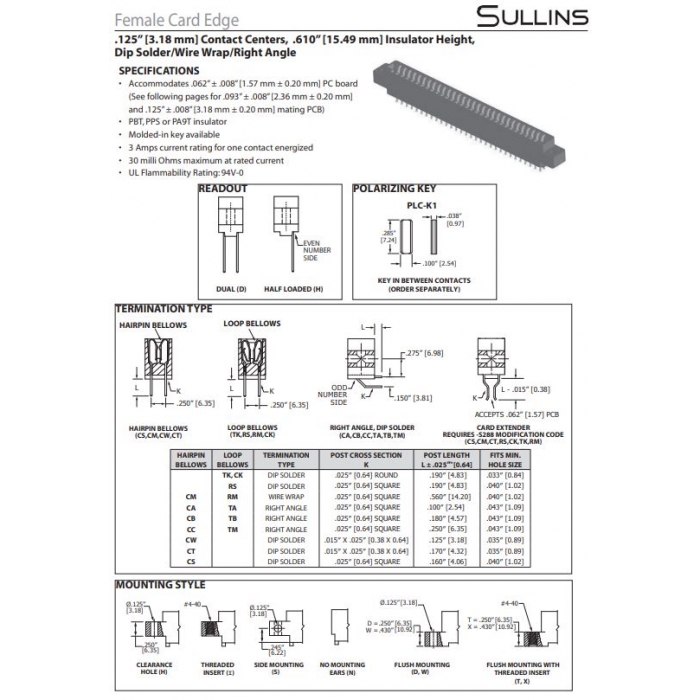

ECA36DRST-S1269 Edgeboard connector with 36 positions per row (dual readout, 72 total contacts) on 0.125" (3.18mm) pitch. Female, through hole mounting, solder termination, gold plated contacts.
Mfr Part #:

ECA36DRST-S1269

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
Edgeboard connector with 36 positions per row (dual readout, 72 total contacts) on 0.125" (3.18mm) pitch. Female, through hole mounting, solder termination, gold plated contacts.
✓ Total Stock: 1 pcs
$ Price Range: $13.07

ECA36DRST-S1269 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ECA36DRST-S1269 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Type
Flange Feature
Gender
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Termination
View Similar Products (0)

ECA36DRST-S1269 Description

Short technical summary and product information.

The ECA36DRST-S1269 from Sullins Connector Solutions is a dual female edgeboard connector designed for reliable PCB card edge connections. It features 36 positions per row across 2 rows with a dual readout configuration, providing 72 total contacts.



Key specifications include a 0.125" (3.18mm) pitch, through hole mounting with solder termination, and gold plated phosphor bronze contacts with 30µin (0.76µm) thickness. The connector supports a card thickness of 0.062" (1.57mm) and operates over a temperature range of -65°C to 125°C.



Mechanical features include a flush mount flange with top opening and threaded insert (4-40). The contact type is loop bellows, ensuring reliable mating. The connector is RoHS3 compliant and has MSL 1 rating (unlimited).



This connector is suitable for a variety of applications requiring dual-sided daughter card interfaces, including computer, telecom, and industrial equipment.

ECA36DRST-S1269 Quick Information

Product Type: Edgeboard Connector
Series: ECA
Canonical Name: Edgeboard Connector, Dual Female, 36 Positions per Row, 2 Rows, 0.125" (3.18mm) Pitch, Through Hole, Solder Termination
Subcategory: Dual Edge, Female

ECA36DRST-S1269 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

ECA36DRST-S1269 Estimated Pricing

Qty Low High
10+ $13.07 $13.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

ECA36DRST-S1269 Features

  • 36 positions per row, 2 rows dual readout.
  • 0.125" (3.18mm) pitch spacing.
  • Through hole mounting with solder termination.
  • Gold plated phosphor bronze contacts.
  • Operating temperature range -65°C to 125°C.

ECA36DRST-S1269 Applications

  • Used in PCB edge card connections.
  • Suitable for dual-sided daughter card interfaces.
  • Common in computer and telecom equipment.
  • Ideal for industrial and commercial applications.

ECA36DRST-S1269 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

The connector has 36 positions per row across 2 rows, with dual readout providing a total of 72 contacts.

What is the pitch of this connector?

The pitch is 3.18mm (0.125").

What is the mounting type and termination?

Mounting type is through hole with solder termination.

What is the operating temperature range?

The operating temperature range is -65°C to 125°C.

What is the contact finish and thickness?

Contact finish is gold with a thickness of 30.0µin (0.76µm).

What card thickness does this connector support?

It supports a card thickness of 0.062" (1.57mm).

What is the flange feature?

The flange feature is flush mount, top opening, with a threaded insert (4-40).
