| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

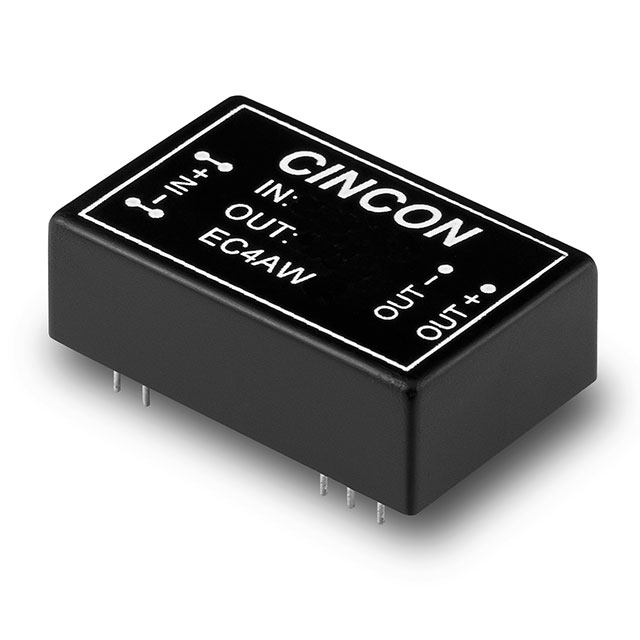

The Cincon EC4AW11 is an isolated DC-DC converter module designed for board-mount power conversion. It delivers a single regulated 5V output at 1A, with a total output power of 5W. The converter operates from a nominal 18V input and achieves a typical efficiency of 79%.
This converter is packaged in a 24-DIP module with 14 leads and through-hole mounting, measuring 31.8mm x 20.3mm x 10.2mm. It features short circuit protection (SCP) and is approved under CE for ITE (Commercial) applications. The operating temperature range is -40°C to 85°C with derating.
Designed for commercial information technology equipment, the EC4AW11 provides isolated power conversion in a compact, reliable form factor. The module is suitable for distributed power architectures requiring a 5V rail from an 18V bus.
Output voltage: 5V, output current: 1A.
The nominal input voltage is 18V.
It is a 24-DIP Module with 14 leads, through-hole mounting.
-40°C to 85°C (with derating).
It is stated as RoHS3 compliant, but this has not been independently verified (low confidence).
79% typical.
Short circuit protection (SCP) and CE approval for ITE (Commercial) applications.
