| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Case Material | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage |

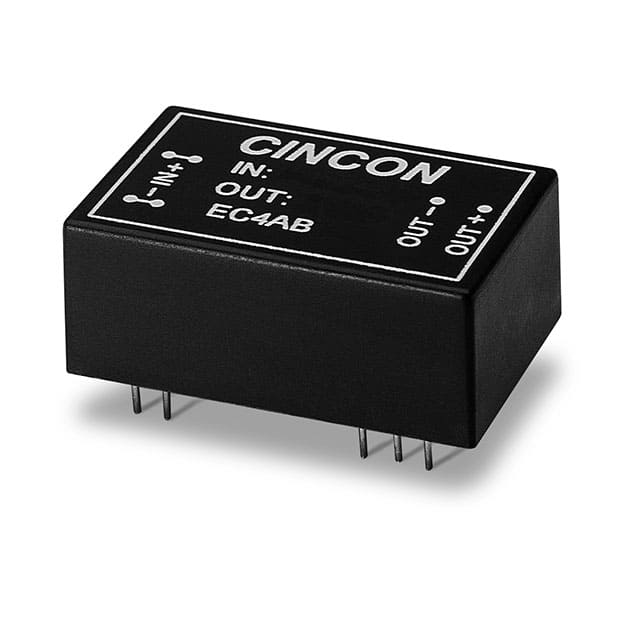

The Cincon EC4AB11 is a 5W isolated DC-DC converter from the EC4AB series. It provides a regulated 5V output at 1A from a nominal 24V input (18-36V range). Designed for commercial ITE applications, it offers reliable performance in a compact DIP package.
Key specifications include a typical efficiency of 79%, output ripple and noise of 100 mV pk-pk maximum, voltage accuracy of ±2%, and a temperature coefficient of ±0.05%/°C. Input-to-output isolation is rated at 500 VDC minimum. The converter includes a pi input filter and continuous short circuit protection for robust operation.
The module is housed in a 24-DIP package with 14 leads for through-hole mounting. Dimensions are 31.8 mm x 20.3 mm x 12.7 mm, with a non-conductive black plastic case. The operating temperature range is -25°C to 71°C.
Compliance includes RoHS3 (low confidence, unverified), MSL 1, and REACH unaffected. The safety certification meets IEC/EN/UL 62368-1 as per the datasheet. Note: Some compliance data is unverified; confirmed values should be obtained from the manufacturer.
Input voltage range 18-36V DC, output 5V DC.
24-DIP Module with 14 leads, through-hole mounting.
-25°C to 71°C.
Yes, RoHS3 compliant (unverified).
79% typical.
Yes, continuous short circuit protection.
500 VDC minimum.
