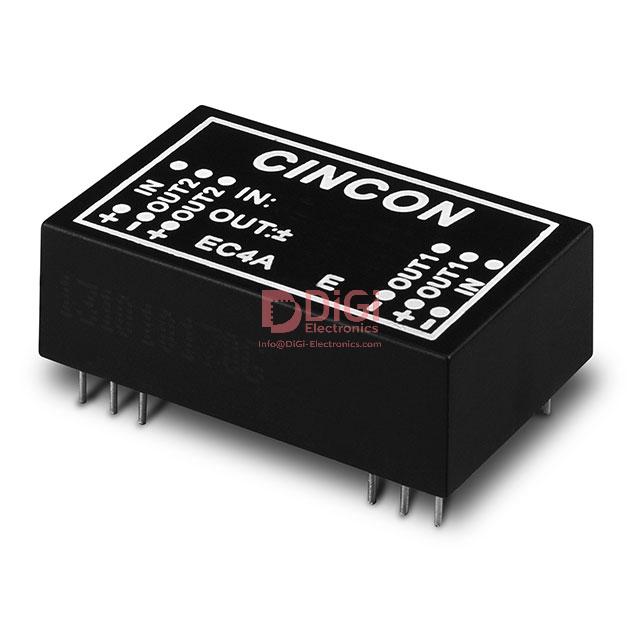

EC4A16H EC4A16H is an isolated DC DC converter producing +/-5V dual outputs at 500mA each, total 5W. Packaged in a through-hole 24-DIP module (14 leads).
Mfr Part #:

EC4A16H

Available from 2 distributors
Mfr Name: Cincon Electronics Co. LTD
Cincon Electronics Co. LTD
EC4A16H is an isolated DC DC converter producing +/-5V dual outputs at 500mA each, total 5W. Packaged in a through-hole 24-DIP module (14 leads).
✓ Total Stock: 80 pcs

EC4A16H Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EC4A16H Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Package / Case
Power (Watts)
Standard Number
Type
Voltage
Width
View Similar Products (0)

EC4A16H Description

Short technical summary and product information.

The EC4A16H is an isolated DC DC converter module manufactured by Cincon Electronics Co. LTD. It provides dual outputs of -5V with a total power rating of 5W, delivering 500mA per output. With an efficiency of 80%, it is suitable for commercial ITE applications.



This converter features short circuit protection (SCP) and operates over a temperature range of -25°C to 71°C. It is approved by CE and cURus agencies, and complies with standard 60950-1. The component is mounted via through-hole technology in a compact 24-DIP module with 14 leads, measuring 31.8mm x 20.3mm x 10.2mm.

EC4A16H Quick Information

Product Type: DC DC Converter
Series: EC4A-E (6W)
Canonical Name: EC4A16H Isolated DC DC Converter, 2 Output, +/-5V, 5W
Subcategory: Dual Output

EC4A16H Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EC4A16H Features

  • Isolated DC DC converter module.
  • Dual outputs of -5V at 500mA each.
  • 5W total output power with 80% efficiency.
  • Short circuit protection (SCP) included.
  • Through-hole 24-DIP module with 14 leads.

EC4A16H Applications

  • Suitable for commercial ITE equipment.
  • Provides isolated bipolar supply rails.
  • Use in industrial control systems.
  • Ideal for distributed power architectures.

EC4A16H FAQs

7 frequently asked questions generated from this part’s specifications.
What are the output voltages and currents of the EC4A16H?

The EC4A16H provides dual outputs: -5V at 500mA each, total power 5W.

What is the package and mounting type of this converter?

It is housed in a 24-DIP module with 14 leads and mounted through-hole.

What is the operating temperature range?

The operating temperature range is -25°C to 71°C.

Is the EC4A16H RoHS compliant?

The part is marked as RoHS3 Compliant (unverified).

What safety certifications does it hold?

It is approved by CE and cURus per standard 60950-1.

What is the efficiency of the converter?

Efficiency is rated at 80%.

Does the EC4A16H include protection features?

Yes, it features short circuit protection (SCP).
