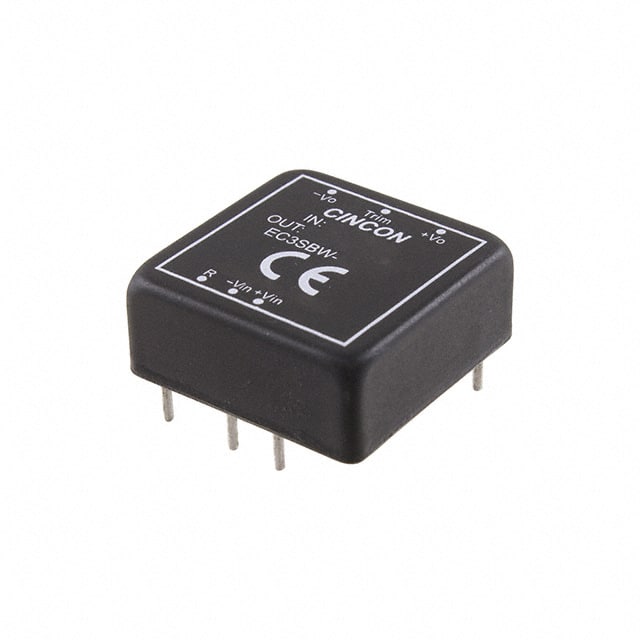

The EC3SBW-24S05 is an isolated DC-DC converter module from Cincon Electronics, part of the EC3SBW series. It delivers a regulated 5V output at up to 3A (15W) from a nominal 24V input (9-36V range).
Key specifications include an efficiency of 87% at full load, a switching frequency of 400 kHz, and 1500 VDC input-to-output isolation. The module features remote on/off control, overcurrent protection, overvoltage protection, short circuit protection, and under voltage lockout.
The converter is housed in a 6-DIP through-hole package measuring 25.4mm x 25.4mm x 10.2mm (1"x1"x0.4"). It operates over a -40°C to +85°C temperature range with derating above 68°C. Cooling is by natural convection.
Designed for ITE (commercial) applications, it meets safety standards IEC/EN/UL 62368-1. The module is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $27.55 | $27.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9-36 VDC.
5 V at up to 3 A.
1500 VDC minimum.
-40°C to +85°C with derating above 68°C.
Yes, it is listed as RoHS3 compliant.
6-DIP Module, through-hole mounting.
Overcurrent protection, overvoltage protection, short circuit protection, and under voltage lockout.
