| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Color | |
| Conductor Cross Section (Maximum @ Flexible with ferrule, max) | |
| Conductor Cross Section (Maximum @ Solid, max) | |
| Conductor Cross Section (Maximum @ Stranded, max) | |
| Conductor Cross Section (Minimum/Maximum @ Solid, min/max) | |
| Contact Mating Finish | |
| Current | |
| Current Rating (Maximum @ UL/CUL Group B) | |
| Finger Protection | |
| Flame Retardant Rating | |
| Industrial Grade | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Screw Thread | |
| Stripping Length | |
| Termination Style | |
| Torque Rating | |
| Type | |
| Voltage | |
| Voltage Rating (Maximum @ IEC) | |
| Voltage Rating (Maximum @ UL/CUL Group B) | |
| Wire Gauge or Range | |
| Wire Range (AWG, UL) | |
| current_rating (Maximum @ IEC) |

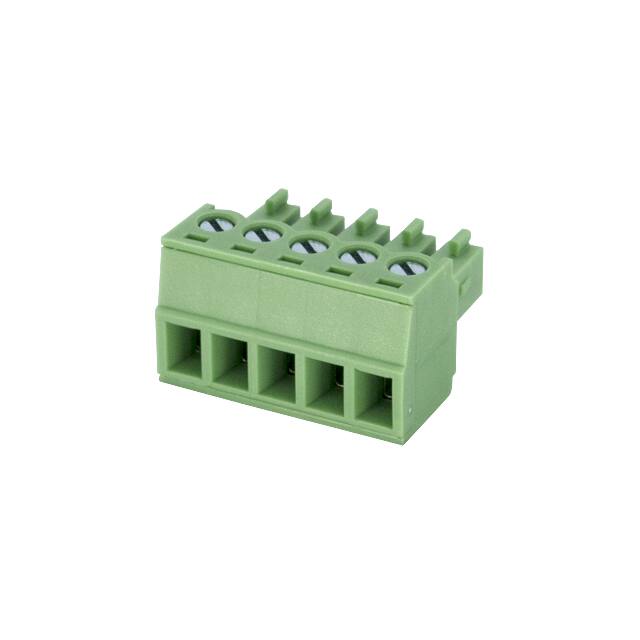

The Dinkle EC381V-05P is a 5-position PCB connector plug from the EC381V series. It features a 3.81 mm pitch and uses screw rising cage clamp termination for secure wire connection. The plug accepts wires from 28 to 14 AWG (0.2-1.5 mm² solid) and has a stripping length of 7-8 mm. Electrically, it is rated for 8 A at 300 V under UL/CUL Group B and 14 A at 320 V per IEC standards. The housing is made of green PA (polyamide) with a UL94 V0 flame retardant rating, and the contacts are tin plated. The plug is designed for free hanging (in-line) mounting and includes finger protection for safety. Operating temperature range is -40°C to 120°C. Insulation resistance is at least 500 MΩ at DC 500V. The screw thread is M2 with a nominal torque of 0.2 N·m. This plug is commonly used for connecting wires to PCB headers in industrial control and automation applications.
5 positions.
3.81 mm (0.150 inches).
UL Group B: 8 A; IEC: 14 A.
UL Group B: 300 V; IEC: 320 V.
Free hanging (in-line).
-40°C to 120°C.
Screw - Rising Cage Clamp.
