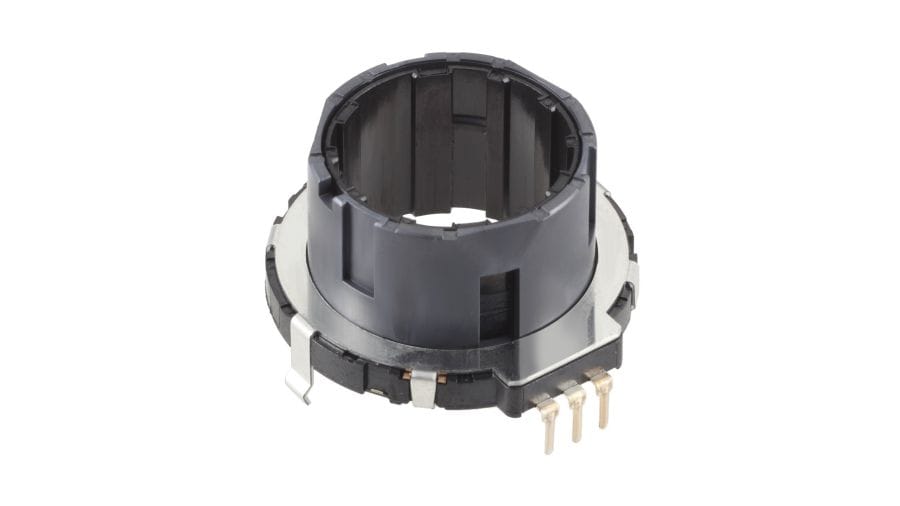

EC28A1560401 The Alps Alpine EC28A1560401 is a 28mm size ring encoder with a 15.0mm actuator length and 30 detents. It offers an operating life of 50,000 cycles.
Mfr Part #:

EC28A1560401

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The Alps Alpine EC28A1560401 is a 28mm size ring encoder with a 15.0mm actuator length and 30 detents. It offers an operating life of 50,000 cycles.
✓ Total Stock: 1,600 pcs
$ Price Range: $1.00

EC28A1560401 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EC28A1560401 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Output
View Similar Products (0)

EC28A1560401 Description

Short technical summary and product information.

The Alps Alpine EC28A1560401 is a ring encoder from the EC28A/EC28C series, featuring a 28mm size and a thin-profile design with a 4.0mm body thickness. This component provides incremental output with two phases, A and B.



Key specifications include an actuator length of 15.0mm, a detent torque of 20±10mN·m, 30 detents, and 15 pulses. The encoder is rated for a maximum of 10mA at 5V DC and has an impressive operating life of 50,000 cycles. It is supplied in a standard package of 800 pieces.



Applications for this ring encoder include major home appliances, office equipment, and audio/visual systems. Its robust design and reliable performance make it suitable for various consumer electronics and automotive navigation/audio systems.

EC28A1560401 Quick Information

Product Type: Ring Encoder
Series: EC28A/EC28C Series
Canonical Name: Alps Alpine EC28A1560401 Ring Encoder
Subcategory: Ring Encoder

EC28A1560401 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EC28A1560401 Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

EC28A1560401 Features

  • 28mm size ring encoder.
  • 15.0mm actuator length.
  • 30 detents and 15 pulses.
  • 50,000 cycles operating life.
  • Rated for 10mA at 5V DC.

EC28A1560401 Applications

  • Suitable for home appliances.
  • Used in office equipment.
  • Applicable for audio and TV.
  • Designed for automotive systems.

EC28A1560401 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating life of the Alps Alpine EC28A1560401 ring encoder?

The operating life of the EC28A1560401 is 50,000 cycles.

How many detents does the EC28A1560401 have?

The EC28A1560401 has 30 detents.

What is the pulse count for the Alps Alpine EC28A1560401 encoder?

The EC28A1560401 encoder has 15 pulses.

What is the actuator length of the EC28A1560401?

The actuator length of the EC28A1560401 is 15.0mm.

What is the maximum rating for the EC28A1560401 ring encoder?

The maximum rating for the EC28A1560401 is 10mA at 5V DC.

What are the package dimensions for the EC28A1560401?

The export package measurements for the EC28A1560401 are 509 x 366 x 287 mm.
