| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,860 pcs
|
1860 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Frequency | |
| Function | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Intel EC2630QI is a high-density, high-efficiency DC-DC intermediate voltage bus converter designed to provide power for point-of-load converter products. It conditions power from a 12V input, generating an output voltage that tracks one half of the input voltage. This converter offers a complete power conditioning solution from a 12V power bus, enabling high efficiency and small PCB area.
Key features include an input voltage range of 10V to 13.2V and a continuous output current capability of 4.5A. The device boasts high and flat efficiency, reaching up to 97.5%. It operates with a switching frequency of 115kHz and includes protection features such as thermal shutdown, short circuit, and UVLO.

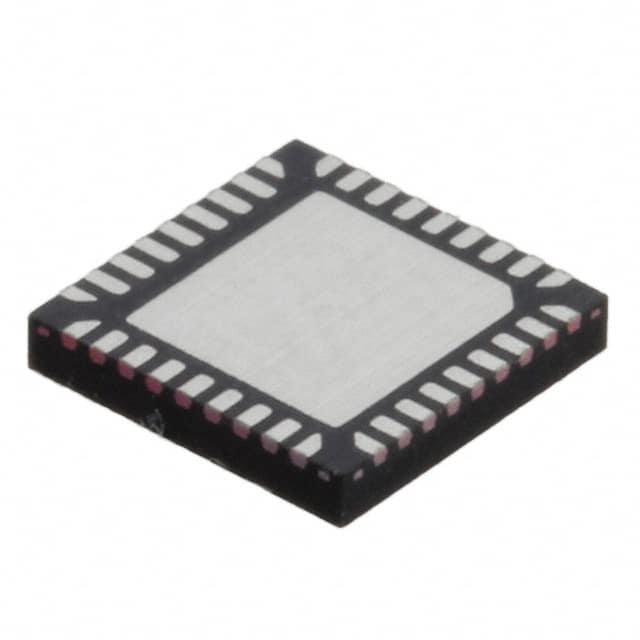

The EC2630QI is housed in a compact 5.5mm x 5.5mm x 3mm 36-QFN package, contributing to a total solution size of 228mm². Its surface mount type ensures ease of integration into various PCB designs. The operating temperature range is -40°C to +85°C.
This converter is suitable for applications requiring down-conversion from a 12V bus to an output voltage with high efficiency, systems requiring multiple voltage rails like FPGAs and ASICs, and enterprise, industrial, embedded, and telecommunication applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 10V to 13.2V.
The EC2630QI can provide a continuous output current of 4.5A.
The efficiency is up to 97.5%.
The operating temperature range is -40°C to +85°C.
The EC2630QI is available in a 36-QFN (5x6) package.
