| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,121 pcs
|
3121 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,027 pcs
|
1027 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Voltage |

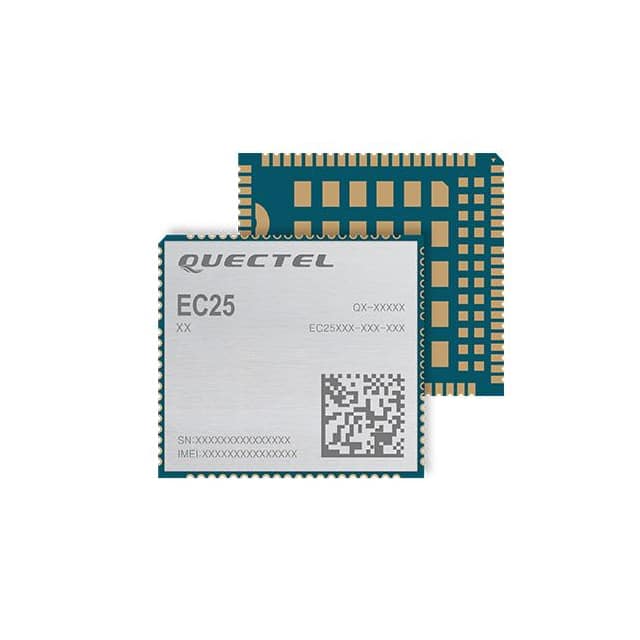

The Quectel Wireless Solutions EC25EFA-512-STD is a versatile RF Transceiver Module designed for cellular and navigation applications. It supports a wide range of protocols including LTE, WCDMA, GSM, GPS, GLONASS, and BeiDou, providing robust connectivity options.
Key electrical specifications include an operating voltage range of 3V to 3.6V, a maximum data rate of 480Mbps, and a sensitivity of -110.5dBm. The module supports modulation schemes such as 8PSK, 16QAM, 64QAM, and GMSK, and operates within frequency bands including 900MHz, 1.8GHz, and GPS frequencies.
Designed for integration into various systems, this module features a Card Edge mounting type. It offers multiple serial interfaces, including I²C, PCM, UART, and USB, facilitating communication with host processors. The operating temperature range is -35°C to 75°C, ensuring reliable performance in diverse environmental conditions.
This module is classified under the RF Transceiver Modules and Modems category. It is suitable for applications requiring reliable cellular and GNSS connectivity, such as IoT devices, tracking systems, and telematics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 3V to 3.6V.
The data rate is up to 480Mbps.
The receiver sensitivity is -110.5dBm.
It supports BeiDou, EDGE, Galileo, GLONASS, GPS, GNSS, GSM, LTE, and WCDMA.
The operating temperature range is -35°C to 75°C.
