| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Output |

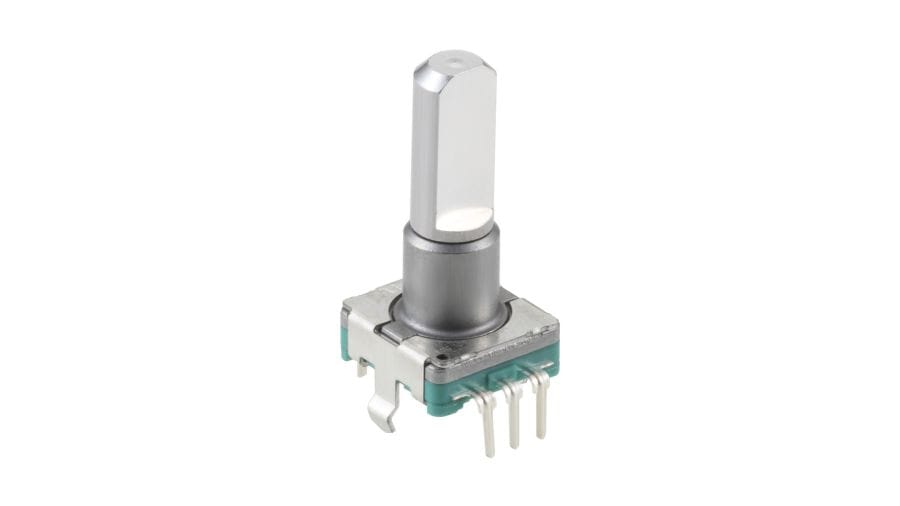

The Alps Alpine EC11E1820402 is a compact and highly reliable metal shaft encoder belonging to the EC11E Series. This encoder features an 11mm size and is designed for a variety of applications including industrial equipment, converters, major home appliances, visual and audio devices, and automotive navigation/audio systems.
Key specifications include an operating life of 15,000 cycles, a detent torque of 10±7mN・m, 36 detents, and 18 pulses. It also features a push-on switch with a travel of 1.5mm. The encoder operates with a maximum rating of 10mA at 5V DC and provides incremental output with two phases, A and B.
This encoder is supplied in a tray package with a standard quantity of 1,200 pieces. Its robust construction and diverse product variety make it suitable for demanding applications where precision and durability are essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating life of the EC11E1820402 encoder is 15,000 cycles.
The EC11E1820402 encoder has 36 detents.
The EC11E1820402 encoder has 18 pulses.
Yes, the EC11E1820402 encoder has a push-on switch with 1.5mm travel.
The EC11E1820402 encoder is 11mm in size.
The maximum rating for the EC11E1820402 encoder is 10mA at 5V DC.
