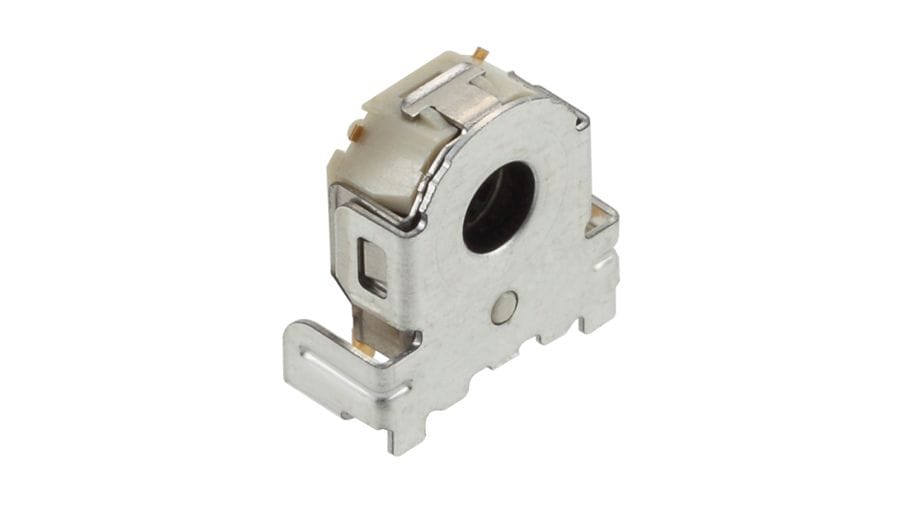

EC05E1220203 The ALPS CANNING EC05E1220203 is a 5mm size Through Shaft Encoder with 12 detents and 12 pulses. It offers an operating life of 100,000 cycles.
Mfr Part #:

EC05E1220203

Available from 1 distributors
Mfr Name: Alps Alpine
Alps Alpine
The ALPS CANNING EC05E1220203 is a 5mm size Through Shaft Encoder with 12 detents and 12 pulses. It offers an operating life of 100,000 cycles.
✓ Total Stock: 3,747 pcs
$ Price Range: $0.99

EC05E1220203 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
3,747 pcs
On Request
3747 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EC05E1220203 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Output
Tape Width
View Similar Products (0)

EC05E1220203 Description

Short technical summary and product information.

The ALPS CANNING EC05E1220203 is a Through Shaft Encoder from the EC05E Series, featuring a compact 5mm size and Drum Cord™ technology. This encoder is designed for applications requiring precise rotational feedback, offering 12 detents and 12 pulses per revolution.



Key specifications include an operating life of 100,000 cycles, a typical detent torque of 1.6 mN·m, and a mount height of 4.5mm. The output is incremental with two phases, A and B. The device is rated for a maximum of 0.55mA at 5.5V DC.



Applications for this encoder include mobile devices such as headsets and wearables, notebooks, and peripherals. In the energy and industrial sectors, it is suitable for robots and drones. It also finds use in gaming consoles and virtual/augmented reality systems, as well as healthcare equipment and analysis test equipment.



The EC05E1220203 is supplied in a standard package of 4,000 pieces with a tape width of 16mm, suitable for automated assembly processes.

EC05E1220203 Quick Information

Product Type: Through Shaft Encoder
Series: EC05E Series
Canonical Name: ALPS CANNING EC05E Series Through Shaft Encoder
Subcategory: Through Shaft Encoder

EC05E1220203 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EC05E1220203 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

EC05E1220203 Features

  • Compact 5mm size Through Shaft Encoder.
  • 12 detents and 12 pulses per revolution.
  • 100,000 cycles rated operating life.
  • Incremental output with two phases (A and B).
  • Suitable for mobile, industrial, and healthcare applications.

EC05E1220203 Applications

  • Used in mobile headsets and wearables.
  • Ideal for notebook and peripheral devices.
  • Applicable for robots and drones.
  • Suitable for home handheld consoles.
  • Used in healthcare equipment and analysis.

EC05E1220203 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating life of the EC05E1220203 encoder?

The operating life is 100,000 cycles.

How many detents does the EC05E1220203 encoder have?

It has 12 detents.

What is the pulse count for the EC05E1220203 encoder?

It has 12 pulses.

What is the typical detent torque for the EC05E1220203 encoder?

The typical detent torque is 1.6 mN·m.

What is the mount height of the EC05E1220203 encoder?

The mount height is 4.5 mm.

What is the size of the EC05E1220203 encoder?

The size is 5 mm.

What type of output does the EC05E1220203 encoder provide?

It provides incremental output with two phases, A and B.
