| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
311 pcs
|
311 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Case Diameter | |
| Case Height | |
| Case Material | |
| Current | |
| Dimming | |
| Dimming Method | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Ingress Protection | |
| Input Voltage Range (Nom) | |
| Input Voltage Range Min | |
| Lead Style | |
| Lifetime | |
| Max Case Temperature | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Current (Min) | |
| Output Current Max | |
| Output Voltage (Nom) | |
| Output Voltage Max | |
| Output Voltage Range | |
| Power | |
| Power (Watts) | |
| Power Factor | |
| Ratings | |
| Startup Time | |
| THD | |
| Tape & Reel | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage |

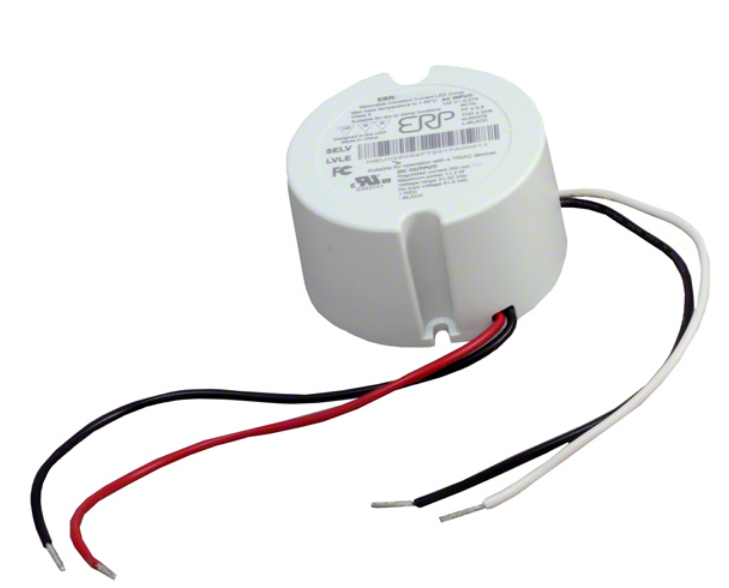

The ERP Power EBR015U-0440-36 is a constant current LED driver designed for indoor lighting applications. It accepts input voltages of 120 VAC or 220/230/240 VAC (nominal) and delivers a constant current output of 440 mA with an output voltage range of 24 to 36 V. The driver provides 16 W of power with an efficiency of 87%.
This driver supports dimming via ELV (reverse-phase) and Triac (forward-phase) dimmers, allowing smooth 1-100% dimming. It features a fast startup time of 150 ms and low total harmonic distortion (THD <20%). The power factor is >0.9, ensuring good power quality.
The driver is housed in a plastic case with a diameter of 58 mm and height of 31.7 mm, with wire leads for termination. It is rated IP20 for indoor use and operates over a temperature range of -30°C to 90°C case temperature. The driver includes protections against over-current (OCP), over-temperature (OTP), and short-circuit (SCP), with auto recovery. The rated lifetime is 50,000 hours at 70°C case temperature.
The EBR015U-0440-36 is suitable for LED lighting applications requiring constant current drive with dimming capability. It is approved to CE and cURus standards.
Minimum input voltage is 120 VAC; nominal input voltage is 220/230/240 VAC.
The plastic case has a diameter of 58 mm and height of 31.7 mm.
Operating temperature range is -30°C to 90°C case temperature.
The RoHS status is listed as RoHS3 Compliant, but this has not been verified and confidence is low.
Yes, it supports dimming via ELV (reverse-phase) and Triac (forward-phase) dimmers, with 1-100% dimming range.
Over-current (OCP), over-temperature (OTP), and short-circuit (SCP) protections with auto recovery.
The driver has a lifetime of 50,000 hours minimum at 70°C case temperature.
