Mfr Part #:

EBM43DRXH

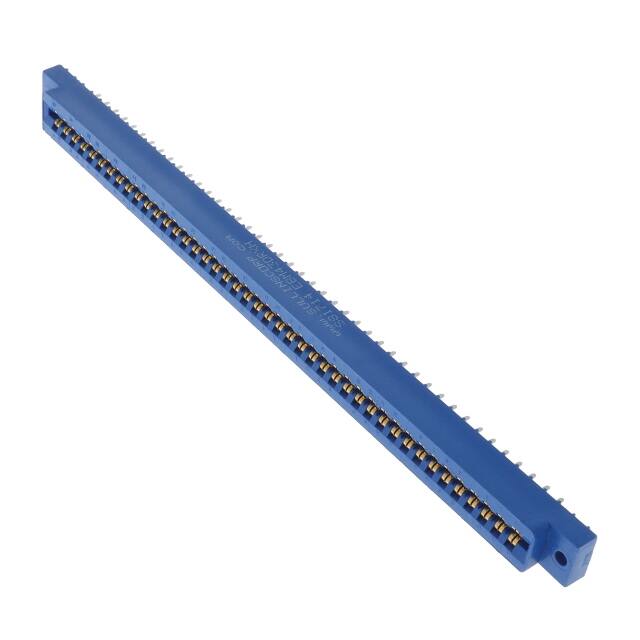

Name: EBM43DRXH
Brand: Sullins Connector Solutions
SKU: EBM43DRXH

Description:

CONN EDGE DUAL FMALE 86POS 0.156

Stock on Request

EBM43DRXH Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 86POS 0.156

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ESM43DRTH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 86POS 0.156

ESM43DRYH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 86POS 0.156

ESM43DRUH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 86POS 0.156

ESM43DRXH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 86POS 0.156

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Full Bellows
Flange Feature	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Female
Mounting Type	Through Hole
Number of Positions	43
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Dual
Termination	Solder
