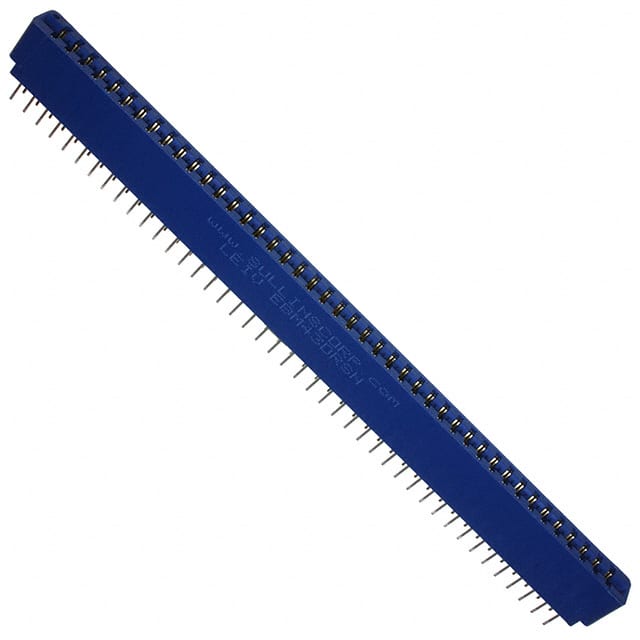

EBM43DRSN The EBM43DRSN is a dual female edgeboard connector from Sullins Connector Solutions with 86 contacts (43 positions x 2 rows) at 0.156" pitch, featuring gold-plated phosphor bronze loop bellows contacts and a through hole solder termination.
Mfr Part #:

EBM43DRSN

Available from 1 distributors
Mfr Name: Sullins Connector Solutions
Sullins Connector Solutions
The EBM43DRSN is a dual female edgeboard connector from Sullins Connector Solutions with 86 contacts (43 positions x 2 rows) at 0.156" pitch, featuring gold-plated phosphor bronze loop bellows contacts and a through hole solder termination.
✓ Total Stock: 100 pcs
$ Price Range: $3.02

EBM43DRSN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request 1100 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EBM43DRSN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Thickness
Card Type
Color
Contact Finish
Contact Finish Thickness
Contact Material
Contact Resistance
Contact Type
Current Rating
Gender
Insulator Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Read Out
Termination
View Similar Products (0)

EBM43DRSN Description

Short technical summary and product information.

The EBM43DRSN is a dual female edgeboard connector designed for reliable card edge interfacing. It accommodates a 0.062" ± 0.008" (1.57 mm ± 0.20 mm) PC board with 43 positions per side, dual readout, and a 0.156" (3.96 mm) contact pitch. The connector uses gold-plated phosphor bronze loop bellows contacts rated at 3 A per contact (one contact energized) with a maximum contact resistance of 30 mOhm at rated current.



The insulator is made of PBT, PPS, or PA9T with a UL 94V-0 flammability rating. The through hole mounting style and solder termination provide secure mechanical attachment. The blue insulator measures 0.610" (15.49 mm) in height. The connector is suitable for applications requiring a reliable dual-readout edge connection with a compact footprint.



Operating temperature range is -65°C to 125°C, making it suitable for industrial environments. The gold contact finish (10.0 µin) ensures low contact resistance and corrosion resistance over repeated mating cycles.

EBM43DRSN Quick Information

Product Type: Edgeboard Connector
Series: EBM43
Canonical Name: Edgeboard Connector, Dual Female, 86 Contacts, 0.156" Pitch, Through Hole, Solder Termination
Subcategory: Edgeboard Connectors

EBM43DRSN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EBM43DRSN Estimated Pricing

Qty Low High
10+ $3.02 $3.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

EBM43DRSN Features

  • Dual female edgeboard connector with 86 contacts.
  • 0.156" (3.96mm) contact pitch for dense PCB connections.
  • Gold-plated phosphor bronze loop bellows contacts.
  • Through hole solder termination for reliable assembly.
  • Rated for 3A current per contact.

EBM43DRSN Applications

  • Ideal for motherboard to daughtercard connections.
  • Used in industrial control and data acquisition systems.
  • Suitable for high-reliability card edge interfaces.

EBM43DRSN FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the EBM43DRSN have?

43 positions per side, dual readout, giving 86 total contacts.

What is the contact pitch of the EBM43DRSN?

3.96 mm (0.156").

What is the current rating of the EBM43DRSN?

3 A per contact when one contact is energized.

What is the mounting type for the EBM43DRSN?

Through hole, solder termination.

What is the operating temperature range?

-65°C to 125°C.

What contact finish is used?

Gold, 10.0 µin (0.25 µm) on phosphor bronze.

Is the EBM43DRSN RoHS compliant?

RoHS status is listed as compliant but unverified.
