Mfr Part #:

EBM15MMJD

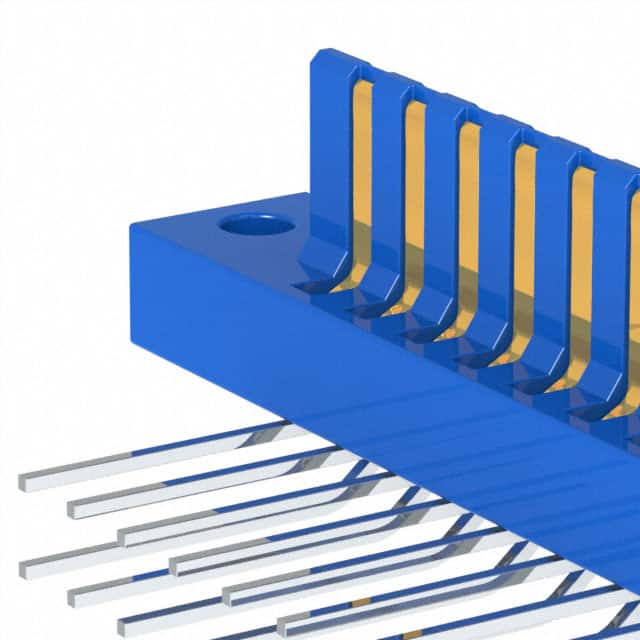

Name: EBM15MMJD
Brand: Sullins Connector Solutions
SKU: EBM15MMJD

Description:

CONN CARDEDGE MALE 30POS 0.156

Stock on Request

EBM15MMJD Description

Short technical summary and product information.

CONN CARDEDGE MALE 30POS 0.156

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

EBM15MMAD

Sullins Connector Solutions

CONN CARDEDGE MALE 30POS 0.156

EBM15MMBD

Sullins Connector Solutions

CONN CARDEDGE MALE 30POS 0.156

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Fits Female Edgecards
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Male
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Dual
Termination	Solder
