Mfr Part #:

EBM12MMND

Name: EBM12MMND
Brand: Sullins Connector Solutions
SKU: EBM12MMND

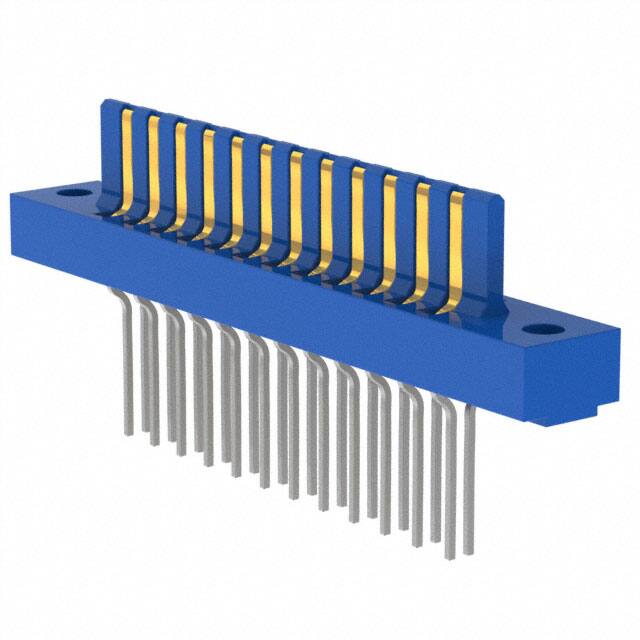

CONN CARDEDGE MALE 24POS 0.156

Stock on Request

EBM12MMND Description

Short technical summary and product information.

CONN CARDEDGE MALE 24POS 0.156

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Fits Female Edgecards
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Male
Mounting Type	Board Edge, Straddle Mount
Number of Positions	12
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Dual
Termination	Solder
