Mfr Part #:

EBM12DRSN

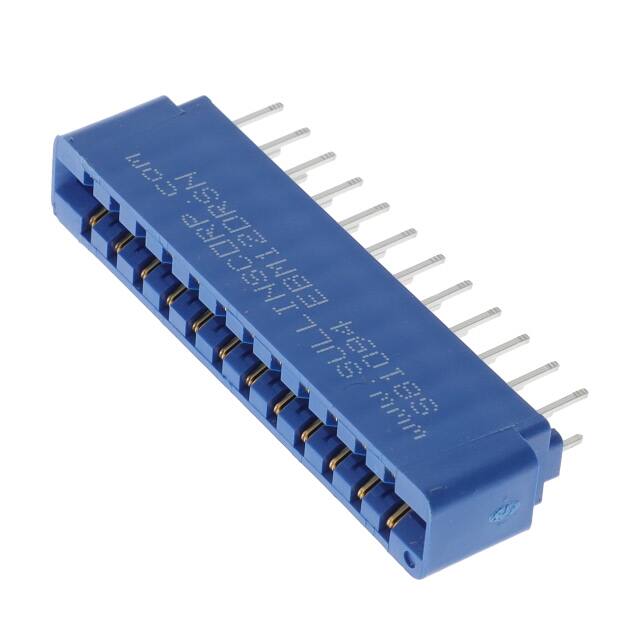

Name: EBM12DRSN
SKU: EBM12DRSN

CONN EDGE DUAL FMALE 24POS 0.156

Stock on Request

EBM12DRSN Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 24POS 0.156

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

EGM12DTKS

Sullins Connector Solutions

CONN EDGE DUAL FMALE 24POS 0.156

ESM12DRSS

Sullins Connector Solutions

CONN EDGE DUAL FMALE 24POS 0.156

ESM12DRSH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 24POS 0.156

ESM12DRSD

Sullins Connector Solutions

CONN EDGE DUAL FMALE 24POS 0.156

Account

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Loop Bellows
Gender	Female
Mounting Type	Through Hole
Number of Positions	12
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.156" (3.96mm)
Read Out	Dual
Termination	Solder
