| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,195 pcs
|
1195 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Captivation | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Current | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Insertion Loss | |
| Insulation Resistance | |
| Intermodulation (3rd Order) | |
| Mating Cycles | |
| Max Soldering Temperature | |
| Min B2B Distance | |
| Mounting Type | |
| Number of Ports | |
| Power Handling | |
| Radial Misalignment | |
| Return Loss | |
| Screening Attenuation (Minimum @ interface only, 4 GHz to 6 GHz) | |
| Screening Attenuation (Minimum @ interface only, up to 4 GHz) | |
| Shield Termination | |
| Tape & Reel | |
| Temperature Range | |
| Test Voltage | |
| Weight | |
| Working Range | |
| Working Voltage | |
| contact_resistance (Maximum @ Center contact) | |
| contact_resistance (Maximum @ Outer contact) | |
| crosstalk (Maximum @ 4 GHz to 6 GHz, B 2 B distance 16.8 mm) | |
| crosstalk (Maximum @ DC to 4 GHz, B 2 B distance 16.8 mm) | |
| disengagement_force (Minimum/Maximum @ EBC LD) | |
| disengagement_force (Minimum/Maximum @ EBC SB) | |
| engagement_force (Minimum/Maximum @ EBC LD) | |
| engagement_force (Minimum/Maximum @ EBC SB) | |
| frequency (Maximum) |

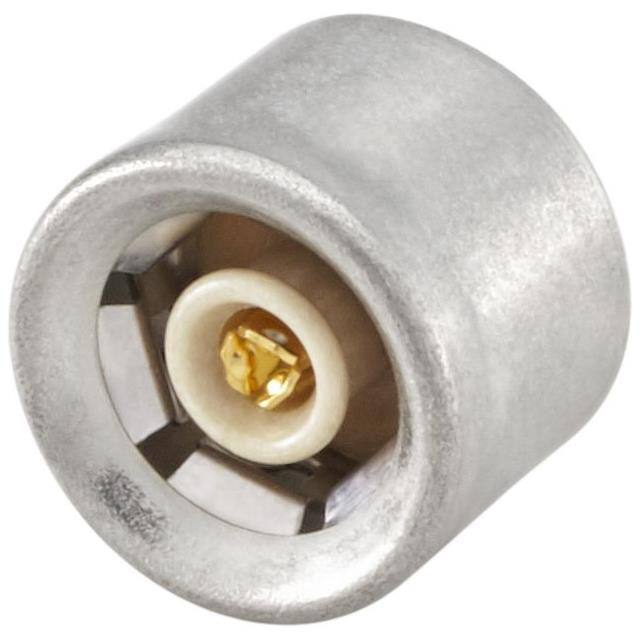

The Rosenberger EBCK111-40MN5 is a straight jack PCB RF connector using the EBC interface. It is designed for surface mount applications with solder termination for both center contact and shield. The connector offers a 50 Ohm impedance and operates from DC to 10 GHz, with a return loss of ≥26 dB from DC to 6 GHz and insertion loss of ≤0.05√f dB. Power handling is 100 W at 2.2 GHz under sea level conditions.
Mechanically, the connector features a push-pull fastening mechanism with a minimum of 100 mating cycles. Engagement forces vary by variant: 13-35 N for LD and 4-12 N for SB. The connector allows a working range of 1.6 mm and accommodates radial misalignment up to ±0.7 mm or 4°. The minimum board-to-board distance is 12 mm.
The operating temperature range is -55°C to +105°C, with a maximum soldering temperature of +260°C for 10 seconds. The part is RoHS compliant and has an MSL rating of 1 (unlimited). The housing is silver in color, with a phosphor bronze center contact and center contact captivation of ≥5 N.
50 Ohm.
DC to 10 GHz.
Working voltage 335 V rms, test voltage 500 V rms at sea level.
≤2 A DC.
Surface mount with solder termination.
-55°C to +105°C.
Yes, RoHS3 compliant as per datasheet.
