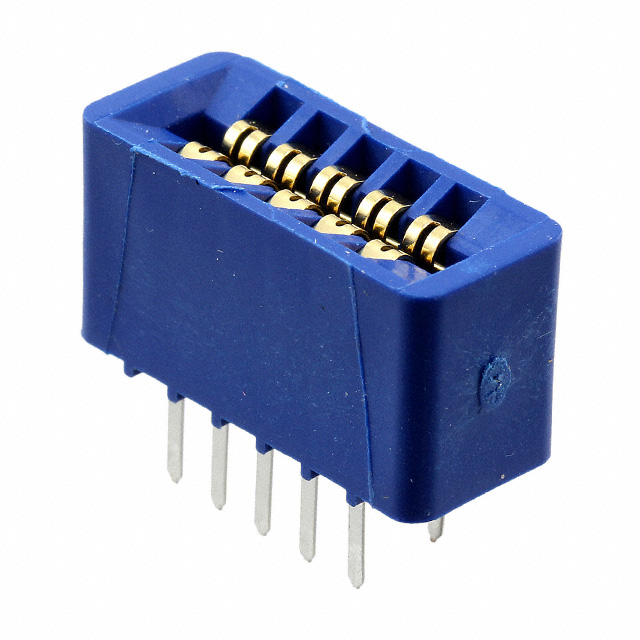

The EBC20DRMN is a female dual readout card edge connector from Sullins Connector Solutions. It features 20 positions with dual readout providing 40 contacts on 2.54mm (0.100 inch) pitch. The connector accommodates a mating PCB thickness of 0.062 inch (1.57mm) and uses loop bellows contacts made of phosphor bronze with gold plating.
The connector is designed for through hole mounting with wire wrap termination, making it suitable for prototyping and applications requiring reliable solderless connections. The insulator is available in PBT, PPS, or PA9T materials and has a UL flammability rating of 94V-0.
Electrically, each contact is rated for 3A with a maximum contact resistance of 30mΩ. The operating temperature range is -65°C to 125°C. The dual readout design allows connection to both sides of the PCB, maximizing contact density.
20 positions (40 contacts with dual readout).
2.54mm (0.100 inch).
3A per contact (one contact energized).
Through hole mounting with wire wrap termination.
Phosphor bronze contacts with gold plating (10µm).
-65°C to 125°C.
94V-0.
