Mfr Part #:

EBC20DRAS

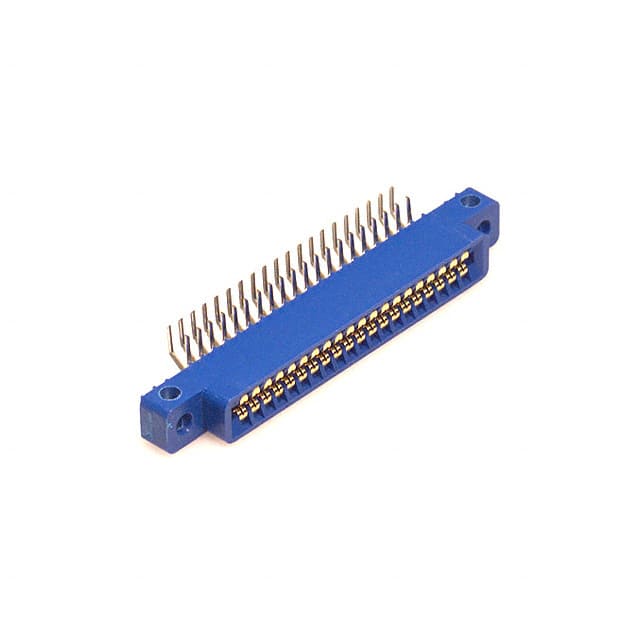

Name: EBC20DRAS
Brand: Sullins Connector Solutions
SKU: EBC20DRAS

Description:

CONN EDGE DUAL FMALE 40POS 0.100

Stock on Request

EBC20DRAS Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 40POS 0.100

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ESC20DRAS

Sullins Connector Solutions

CONN EDGE DUAL FMALE 40POS 0.100

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Full Bellows
Flange Feature	Side Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Female
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Read Out	Dual
Termination	Solder
