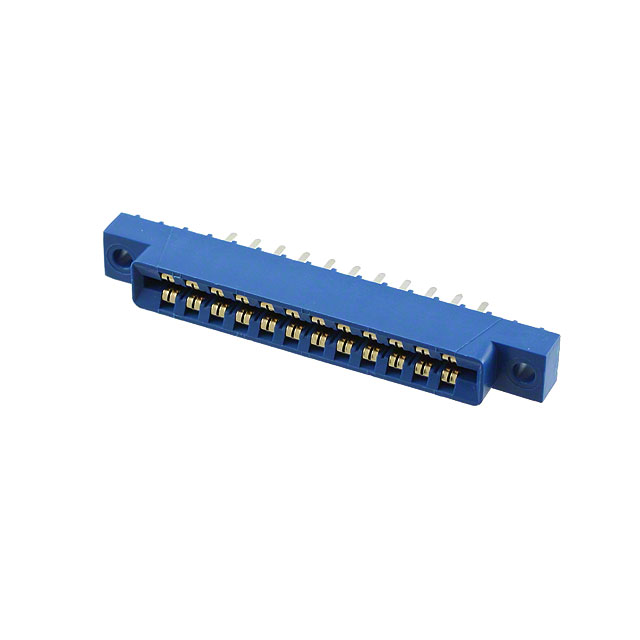

The EBC12DRXI is a dual female edgeboard connector from Sullins Connector Solutions, designed to accommodate a 0.062" (1.57mm) thick mating PCB. It features 24 contacts arranged in 2 rows on 0.100" (2.54mm) pitch, with a dual readout configuration. The contacts are made of phosphor bronze with a 10µin gold finish, providing reliable electrical performance.
Electrical specifications include a contact current rating of 3A per contact (one contact energized) and a maximum contact resistance of 30mΩ. The operating temperature range is -65°C to 125°C, making it suitable for demanding environments. The insulator material is not specified for this exact part, but the datasheet indicates options such as PBT, PPS, PA9T, or PEEK. The connector carries a UL94 V-0 flammability rating.
Mechanically, the connector uses through hole mounting with solder termination. It includes a flange feature with a top mount opening and a threaded insert for 4-40 screws. The card slot is open, and the connector is available in blue color. This connector is commonly used for PCB edge connection in various electronic systems.
24 contacts (12 positions x 2 rows).
0.100" (2.54mm).
3A per contact (one contact energized).
Through hole with solder termination.
-65°C to 125°C.
Phosphor bronze with 10µin gold plating.
UL94 V-0.
