| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Flange Feature | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Max | |
| Pitch | |
| Read Out | |
| Termination | |
| Termination Style |

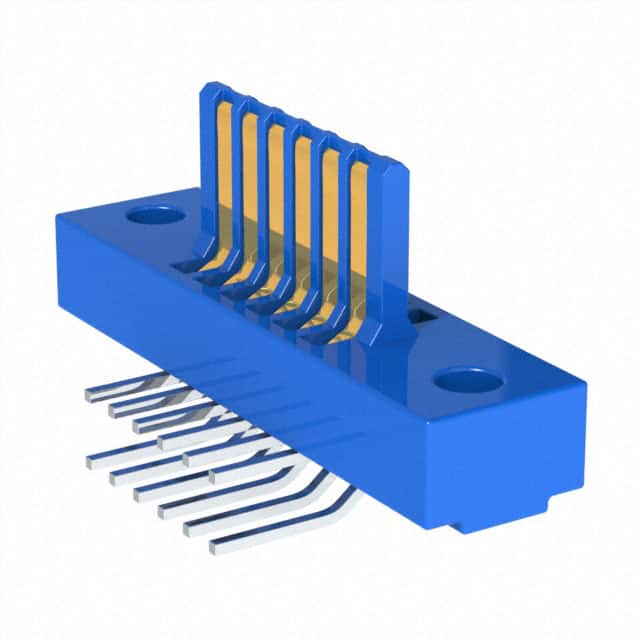

This is a male card edge connector designed to fit female edgecards with a card thickness of 0.062" (1.57mm). It has 12 positions arranged in 2 rows with a pitch of 0.100" (2.54mm) and dual readout.
The connector features gold-plated phosphor bronze contacts with a finish thickness of 10.0µin (0.25µm). It is rated for operating temperatures from -65°C to 125°C. The flange feature is flush mount, top opening, unthreaded with 0.125" (3.18mm) diameter.
Mounting is through hole, right angle with solder termination. The connector body is blue. It is RoHS3 compliant (unverified) and has MSL 1 (unlimited). This connector is suitable for applications requiring reliable edge connections in industrial or commercial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.08 | $4.08 |
| 10+ | $3.46 | $3.46 |
| 30+ | $3.20 | $3.20 |
| 50+ | $3.09 | $3.09 |
| 100+ | $2.94 | $2.94 |
| 250+ | $2.76 | $2.76 |
| 500+ | $2.63 | $2.63 |
| 1,000+ | $2.50 | $2.50 |
| 2,500+ | $2.35 | $2.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions arranged in 2 rows.
0.100" (2.54mm).
Through hole, right angle with solder termination.
-65°C to 125°C.
Gold with 10.0µin (0.25µm) thickness over phosphor bronze.
0.062" (1.57mm) thick edgecards.
RoHS3 compliant (unverified).
