Mfr Part #:

EBC06DRXH

Name: EBC06DRXH
SKU: EBC06DRXH

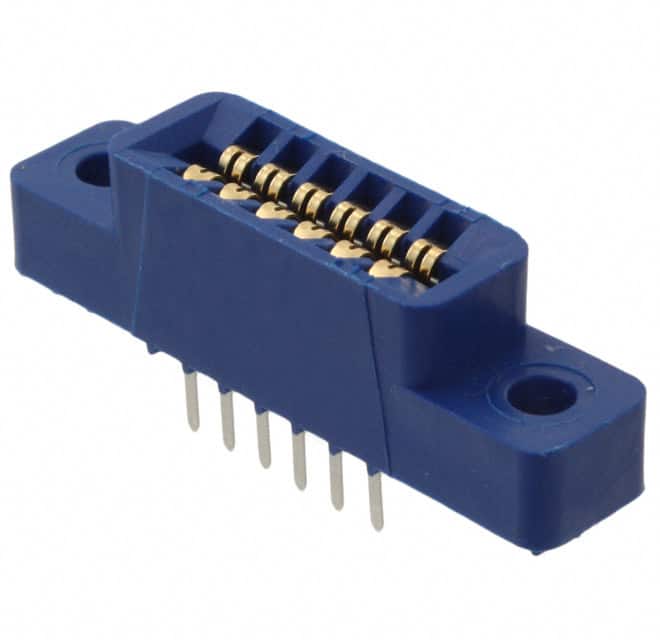

CONN EDGE DUAL FMALE 12POS 0.100

Stock on Request

EBC06DRXH Description

Short technical summary and product information.

CONN EDGE DUAL FMALE 12POS 0.100

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

EBC06DRTH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 12POS 0.100

EBC06DRYH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 12POS 0.100

ESC06DRXH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 12POS 0.100

ESC06DRTH

Sullins Connector Solutions

CONN EDGE DUAL FMALE 12POS 0.100

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Non Specified - Dual Edge
Color	Blue
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Full Bellows
Flange Feature	Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Female
Mounting Type	Through Hole
Number of Positions	6
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Read Out	Dual
Termination	Solder
