Mfr Part #:

EBC05MMRD

Name: EBC05MMRD
Brand: Sullins Connector Solutions
SKU: EBC05MMRD

Description:

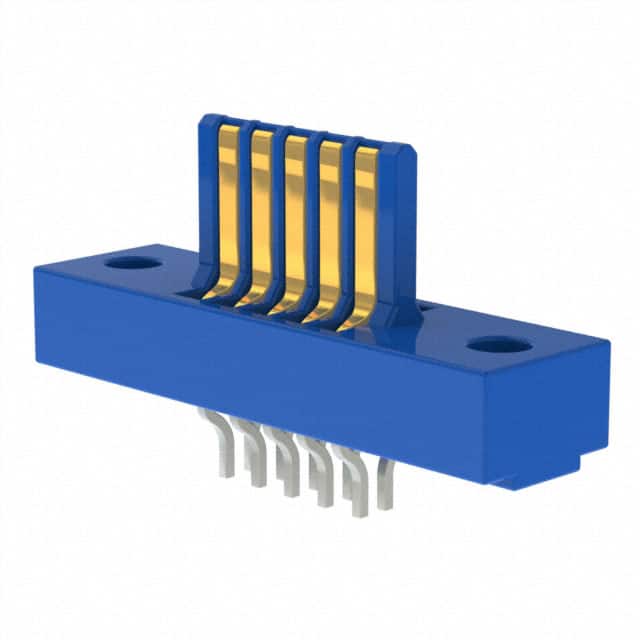

CONN CARDEDGE MALE 10POS 0.100

Stock on Request

EBC05MMRD Description

Short technical summary and product information.

CONN CARDEDGE MALE 10POS 0.100

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

EBC05MMND

Sullins Connector Solutions

CONN CARDEDGE MALE 10POS 0.100

Category	Edgeboard Connectors
Manufacturer Name	Sullins Connector Solutions
Card Thickness	0.062" (1.57mm)
Card Type	Fits Female Edgecards
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Contact Material	Phosphor Bronze
Features	Card Extender
Flange Feature	Flush Mount, Top Opening, Unthreaded, 0.125" (3.18mm) Dia
Gender	Male
Mounting Type	Board Edge, Straddle Mount
Number of Positions	5
Number of Rows	2
Operating Temperature	-65°C ~ 125°C
Pitch	0.100" (2.54mm)
Read Out	Dual
Termination	Solder
