| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Housing Material | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Standard | |
| Terminal Material | |
| Termination | |
| Termination Style | |
| Voltage Rating |

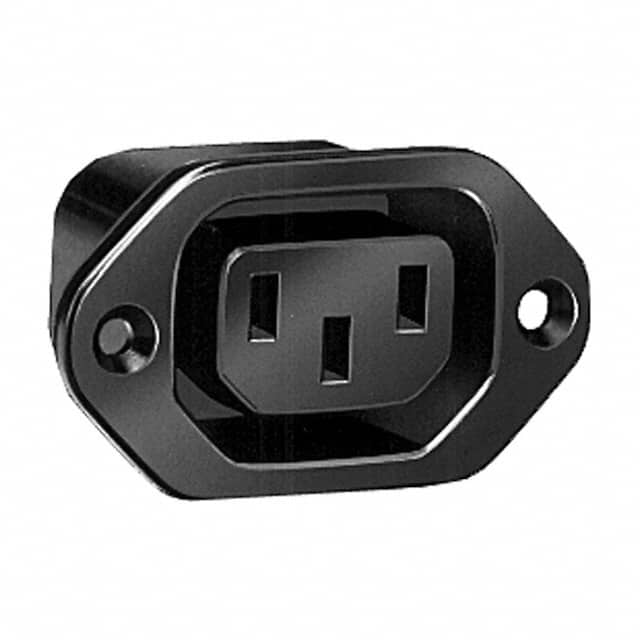

The EAC305 is a power entry module from Conxall/Switchcraft designed to accept an IEC 320-2-2/F inlet. It features 3 female sockets (line, neutral, earth) in a panel mount flange configuration. The connector is rated for 15A at 250VAC under UL and CSA, and meets IEC 60320 specification. Termination is via solder eyelet connections, suitable for chassis wiring. The housing is made of black thermoplastic, and terminals are tin plated copper alloy. The panel cutout is rectangular, 32.39mm x 24.76mm. This is an unfiltered commercial grade module, meaning it does not include EMI filtering or a fuse holder. It is suitable for use in power supplies, medical equipment, and industrial controls where a standard IEC inlet is required. The approvals include UL and CSA, though the database also lists SEMKO and SEV, which should be verified. The part is RoHS3 compliant and has MSL 1 (unlimited).
3 positions (line, neutral, earth).
15A (UL/CSA) per datasheet, and 10A per database entry.
250VAC.
Panel mount with flange.
Solder eyelet.
No, it does not accommodate a fuse.
IEC 60320 specification.
