Mfr Part #:

EA DOGM081B-A

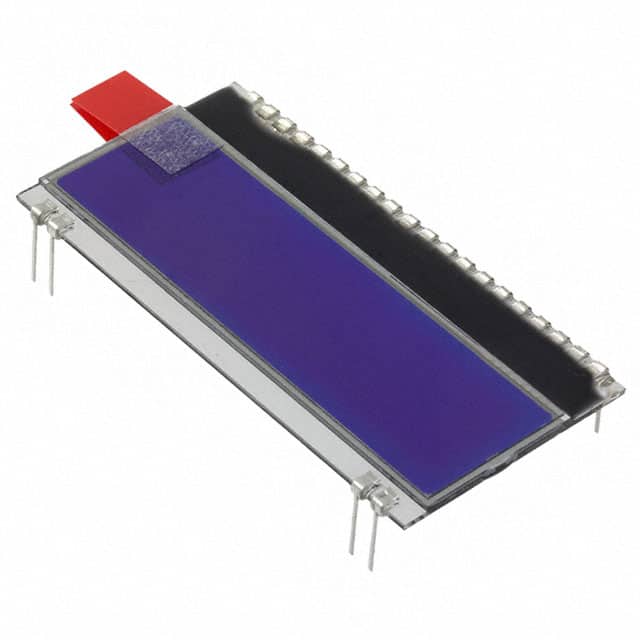

Name: EA DOGM081B-A
Brand: Display Visions
SKU: EA DOGM081B-A

Mfr Name: Display Visions

Description:

LCD MOD 8 DIG 8 X 1 TRANSMISSIVE

Stock on Request

EA DOGM081B-A Description

Short technical summary and product information.

LCD MOD 8 DIG 8 X 1 TRANSMISSIVE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Display Modules - LCD, OLED Character and Numeric
Manufacturer Name	Display Visions
Background Color	Blue
Backlight	Without Backlight
Character Format	5 x 8 Dots
Character Size	11.97mm H x 4.97mm W
Display Format	8 x 1
Display Mode	Transmissive
Display Type	STN - Super-Twisted Nematic
Dot Size	0.97mm W x 1.47mm H
Interface	Parallel, 8-Bit, SPI
Number of Characters	8
Operating Temperature	-20°C ~ 70°C
Outline L x W x H	55.00mm x 27.94mm x 2.00mm
Text Color	White
Viewing Area	51.00mm L x 14.50mm W
Voltage	3.3V
