Mfr Part #:

E8124-010-01

Name: E8124-010-01
Brand: Pulse Electronics
SKU: E8124-010-01

Mfr Name: Pulse Electronics

Description:

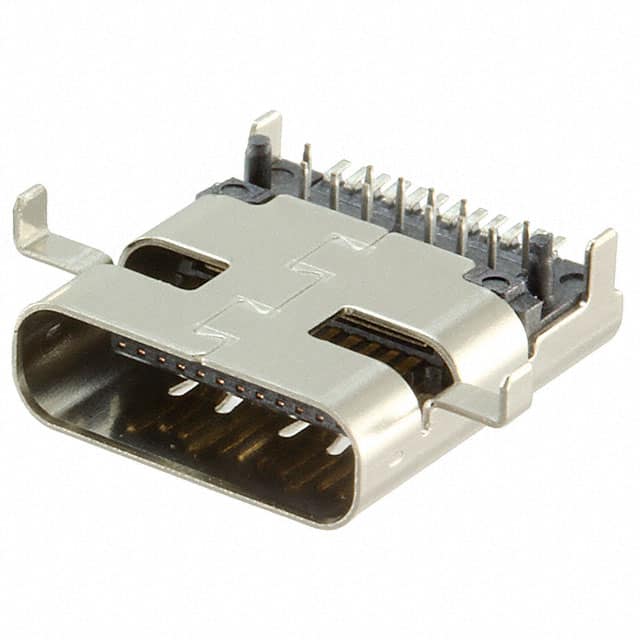

CONN RCPT USB3.1 TYPEC 24POS SMD

Stock on Request

E8124-010-01 Description

Short technical summary and product information.

CONN RCPT USB3.1 TYPEC 24POS SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	USB, DVI, HDMI Connector Assemblies
Manufacturer Name	Pulse Electronics
Connector Type	USB-C (USB TYPE-C)
Current Rating (Amps)	5A
Features	Board Guide
Gender	Receptacle
Mating Cycles	10000
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature	-55°C ~ 85°C
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
